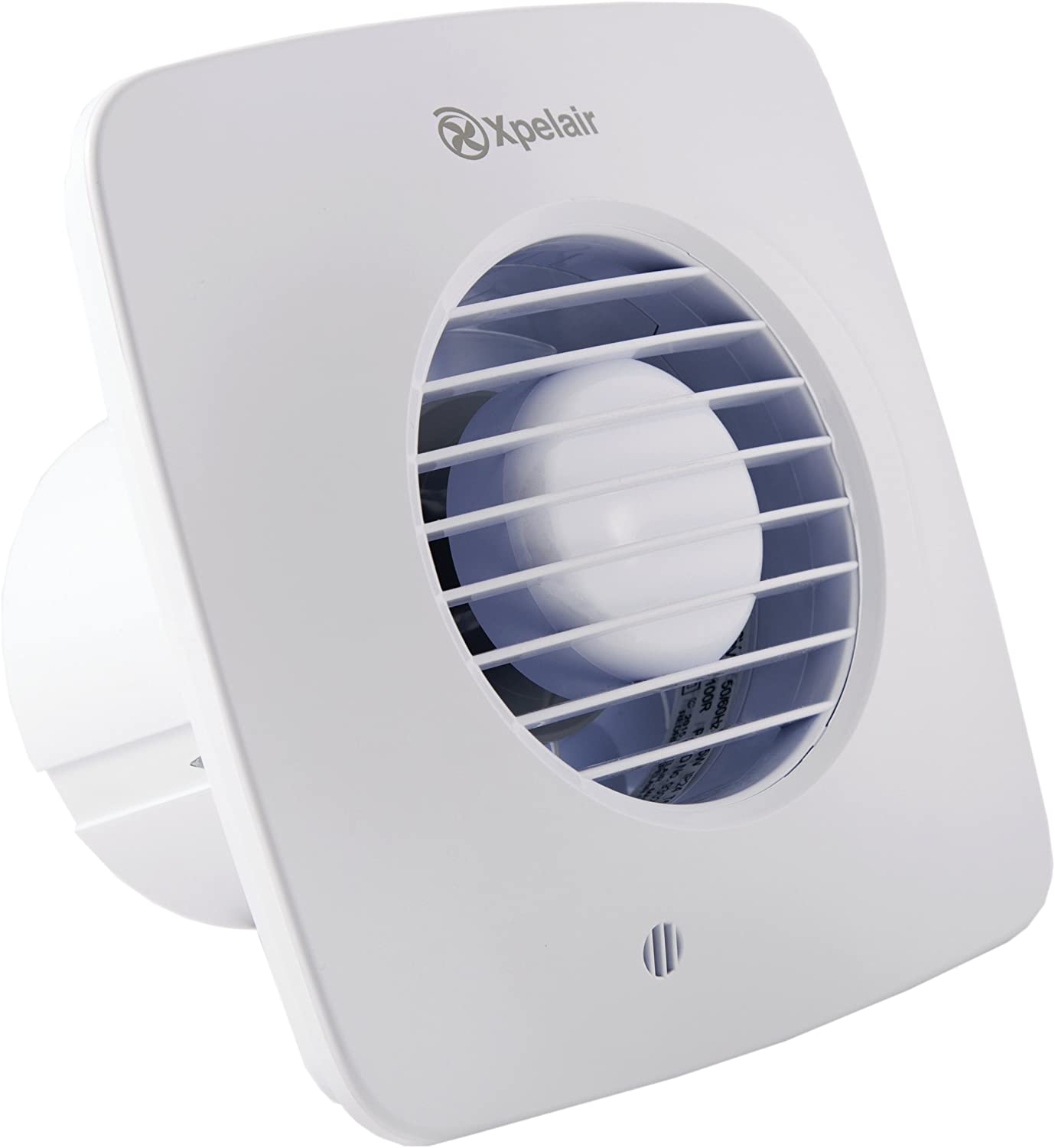

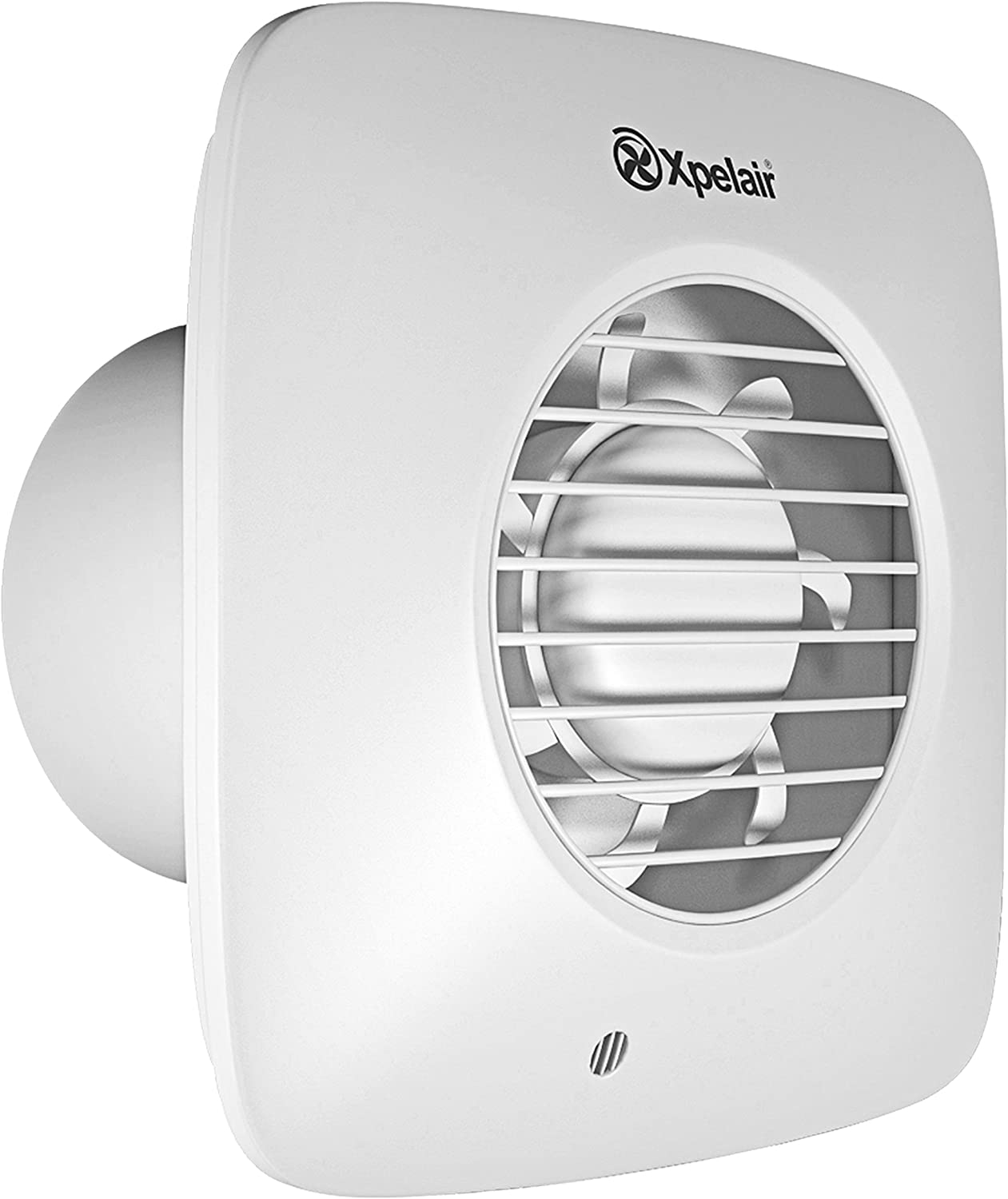

Xpelair DX100S 4-Inch Standard Square Bathroom Fan with Wall Kit
Colour Name:Cool Whiteí«ÌÎ_|í«ÌÎ_ Style Name:Timer Delay
Product Description

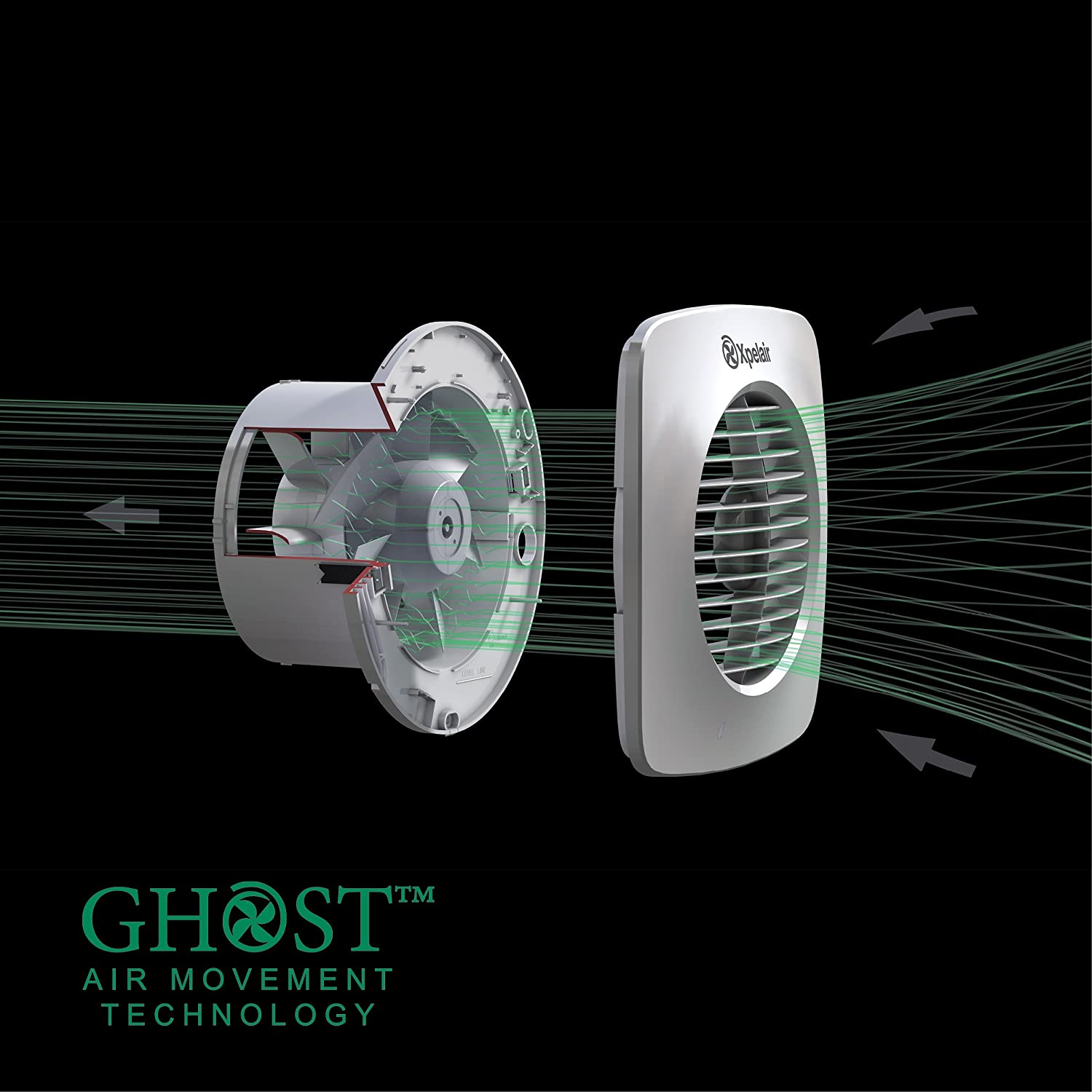

The Simply Silent DX100TS twin-speed extractor fan with wall kit features Ghost Air Movement Technology designed to deliver near silent ventilation.
Meeting the latest building regulations this 4" (100mm) fan is specifically designed for use in bathrooms, shower rooms and ensuites. Requiring a 100mm diameter hole the Simply Silent DX100TS is an ideal replacement for old noisy fans or as a new installation.
The fan has a choice of two speeds that can be set to extract 15 or 21 litres of air per second and with innovative Ghost Air Movement Technology delivers low noise levels of 22 or 34 decibels @ 3 meters ensuring minimum noise irritation (15 litres per second at 22 dBA or 21 litres per second @ 34 dBA) .
With a more conventional grille-style fascia finished in Xpelair's cool white, the DX100TS offers a number of So Simple installation features making it the ideal replacement fan and with So Simple Maintenance features such as a twist and click facia the products is easy to clean and maintain.

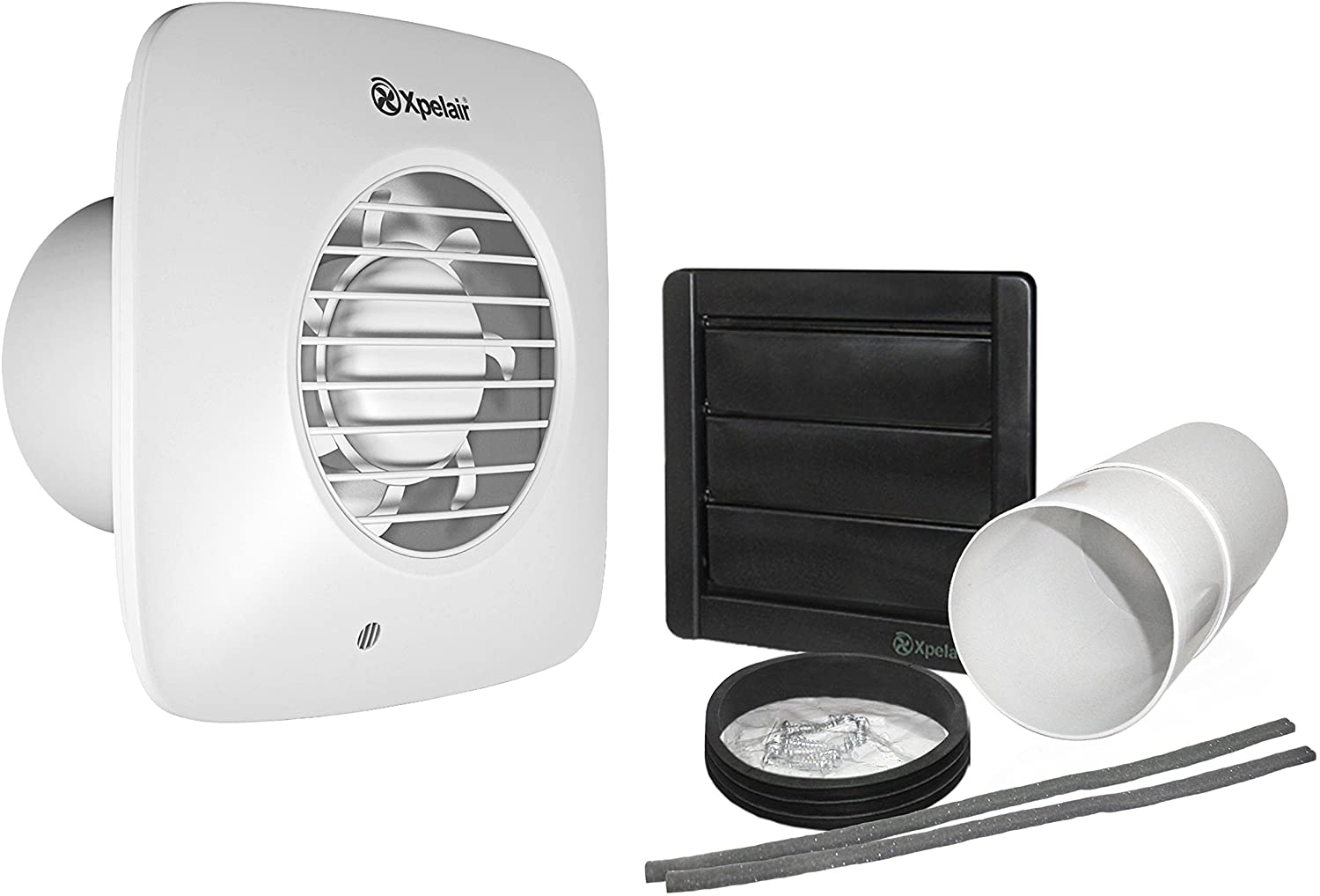

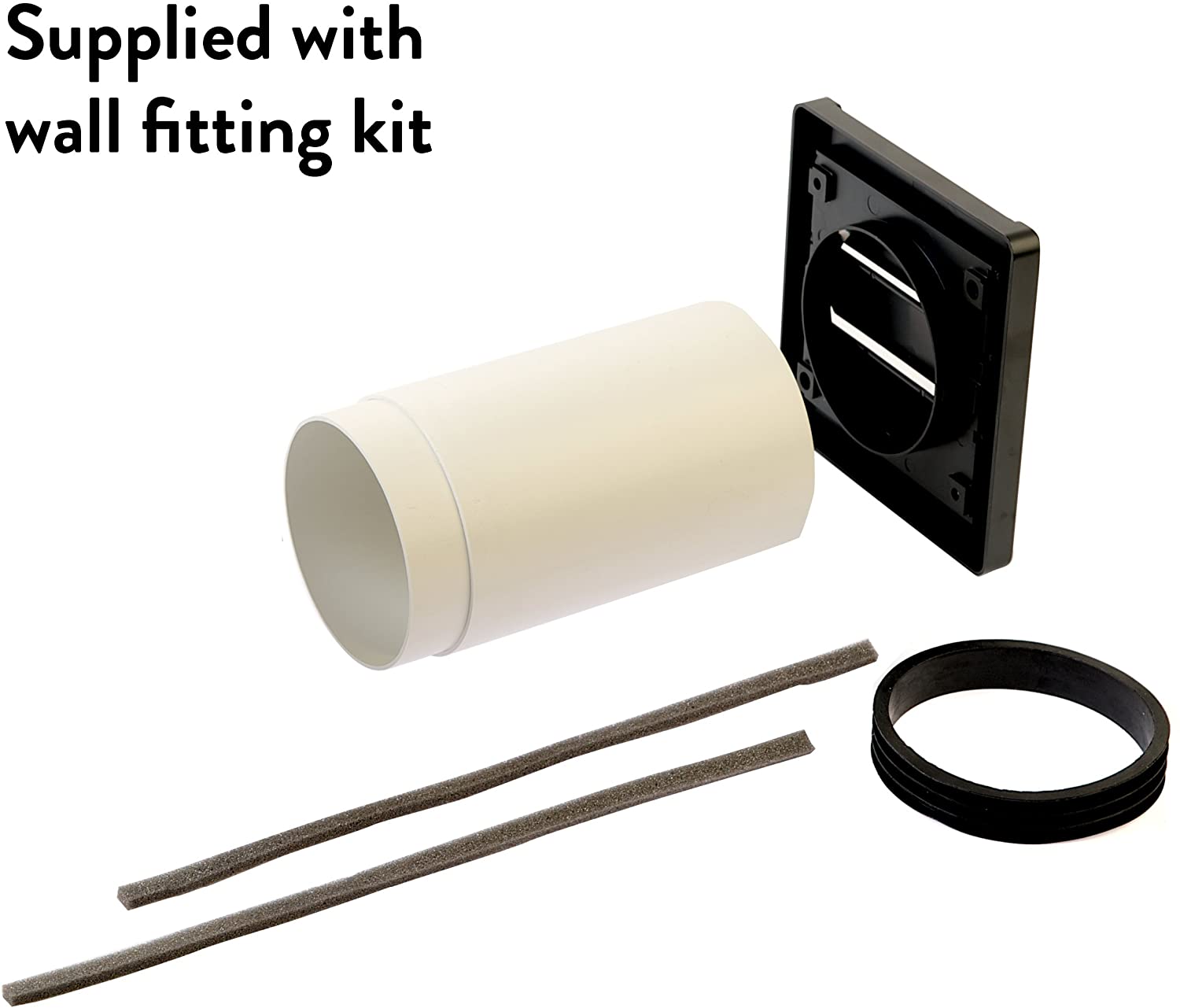

The wall kit comprises a 300mm length of round telescopic wall tube and an external grille along with the fixings required to complete a through the wall installation. The plastic wall tube is 100mm in diameter and supplied in two pieces that slide into each other enabling the wall tube to be adjusted to the required length without the requirement to cut to down.
The DX100TS is available in four options...
Standard: Operated by remote switch usually a lighting circuit
Timer: Operated by remote switch usually a lighting circuit, timer adjustable 30 sec - 30 minutes
Pull Cord: Operated by a built-in on/off pull cord switch
Humidistat: Operated by built-in humidity sensor adjustable from 50-90% RH. Timer function adjustable 30 sec-30mins
Box Contains
1 x Extractor Fan 1 x 300mm telescopic wall tube 1 x External Grille 1 x Screws and Raw Plugs 1 x Instruction Manual
- Ghost Air Movement Technology designed to deliver near-silent running
- Twin speed extractor fan delivering selected extraction rate of 54 or 76 meters per hour (15 or 21 litres per second)
- Simply Silent noise levels of 22 or 34 dBA at 3m (independently tested by ISVR)
- Wall kit with 300mm of telescopic wall tube and external grille
- Designed for use in bathrooms and shower rooms, complies with building regulations Part F and L
- included components: DX100TS
