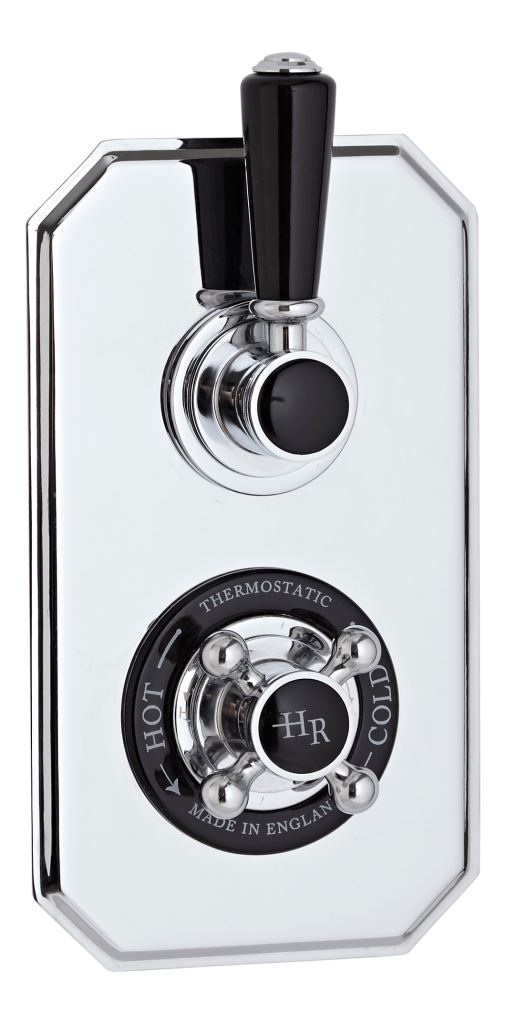

Hudson Reed Twin Concealed Shower Valve With Diverter
Hudson Reed Twin Concealed Shower Valve With Diverter
Couldn't load pickup availability
Combining the elegance of traditional styling with the precision and technology of modern day design. Accurate flow control. Thermostatic control to +/- 1 degree - even if the water pressure fluctuates. Full thermal protection to prevent scalding in the event of hot or cold water shut off. In the event of hot or cold water failure the valve will shut down as per the relevant standard. The unique cartridge is highly resistant to calcium build up - even in hard water areas. Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers. Excellent flow rates - even at low pressure. Our valves can deliver 5.5 litres per minute at 0.1 bar pressure. The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing. Simply remove the cartridge turn 180° and replace. Manufactured from high quality brass & ABS.
- colour finish: Chrome
- flow rate at 0 1 bar l min: 5.5000
- flow rate at 0 5 bar l min: 14.0000
- flow rate at 1 bar l min: 20.0000
- flow rate at 2 bar l min: 29.0000
- flow rate at 3 bar l min: 44.0000
- guarantee: 20 Years
- handle type: Crosshead/Lever
- material: Brass Abs
- minimum operating pressure bar: 0.1 Bar
- mount type: Wall Hung
- packaging height: 110.0000 mm
- packaging length: 250.0000 mm
- packaging width: 240.0000 mm

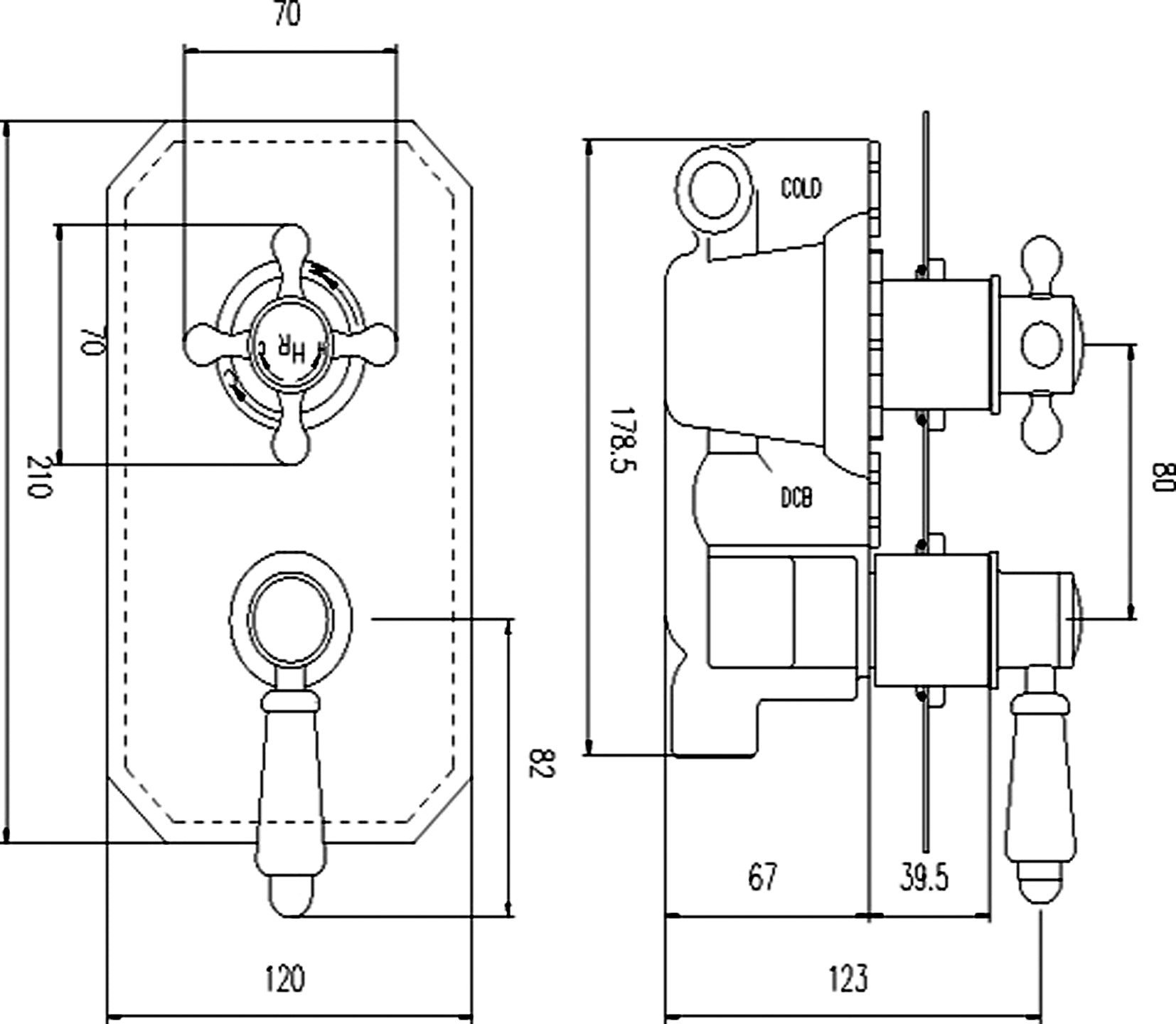

- pipe centres mm: 150
- product depth: 135 mm
- product height: 230 mm
- product width: 120 mm
- shipping load type: Standard Parcel
- tmv2 approved: No
- tmv3 approved: No
- valve cartridge type: 1/4 Turn
- wras approval number: 250602040
- wras approved: Yes
