The One Stop Bathroom Shop

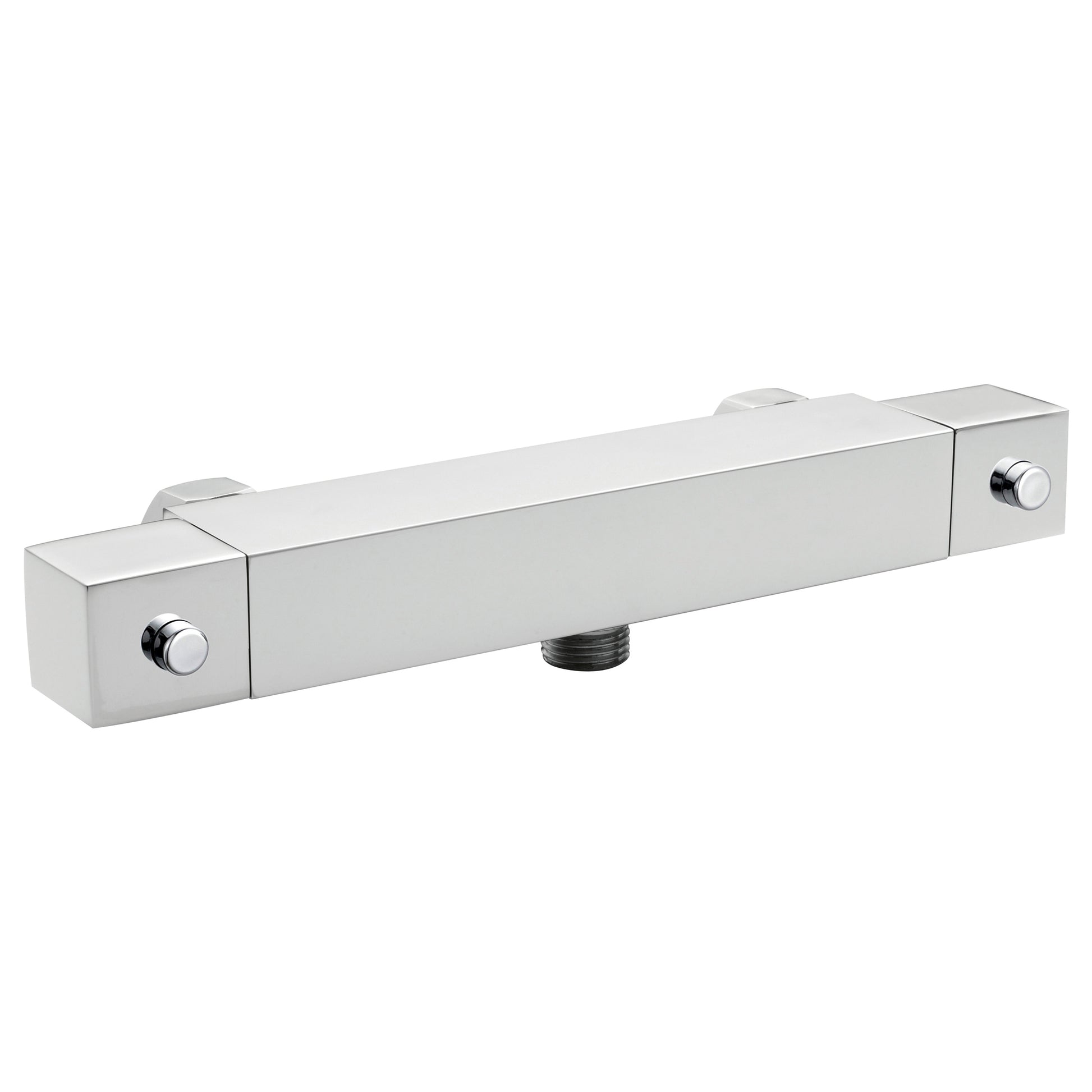

NUIE Thermostatic Bar Valve
NUIE Thermostatic Bar Valve
Regular price
£114.36 GBP
Regular price
Sale price
£114.36 GBP
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Thermostatically controlled. Bottom outlet. Thermostatic control to +/- 2 degrees even if the water pressure fluctuates. Full thermal protection to prevent scalding in the event of hot or cold water shut off. In the event of hot or cold water failure the valve will shut down as per the relevant standard. Suitable for unvented mains pressure systems. Suitable for shower pumps. Manufactured from high quality brass & ABS.
- colour finish: Chrome
- flow rate at 0 1 bar l min: 4.0000
- flow rate at 0 5 bar l min: 9.0000
- flow rate at 1 bar l min: 14.0000
- flow rate at 2 bar l min: 21.0000
- flow rate at 3 bar l min: 26.0000
- guarantee: 5 Years
- handle type: Square
- material: Brass Abs
- minimum operating pressure bar: 0.5 Bar
- mount type: Surface/Wall

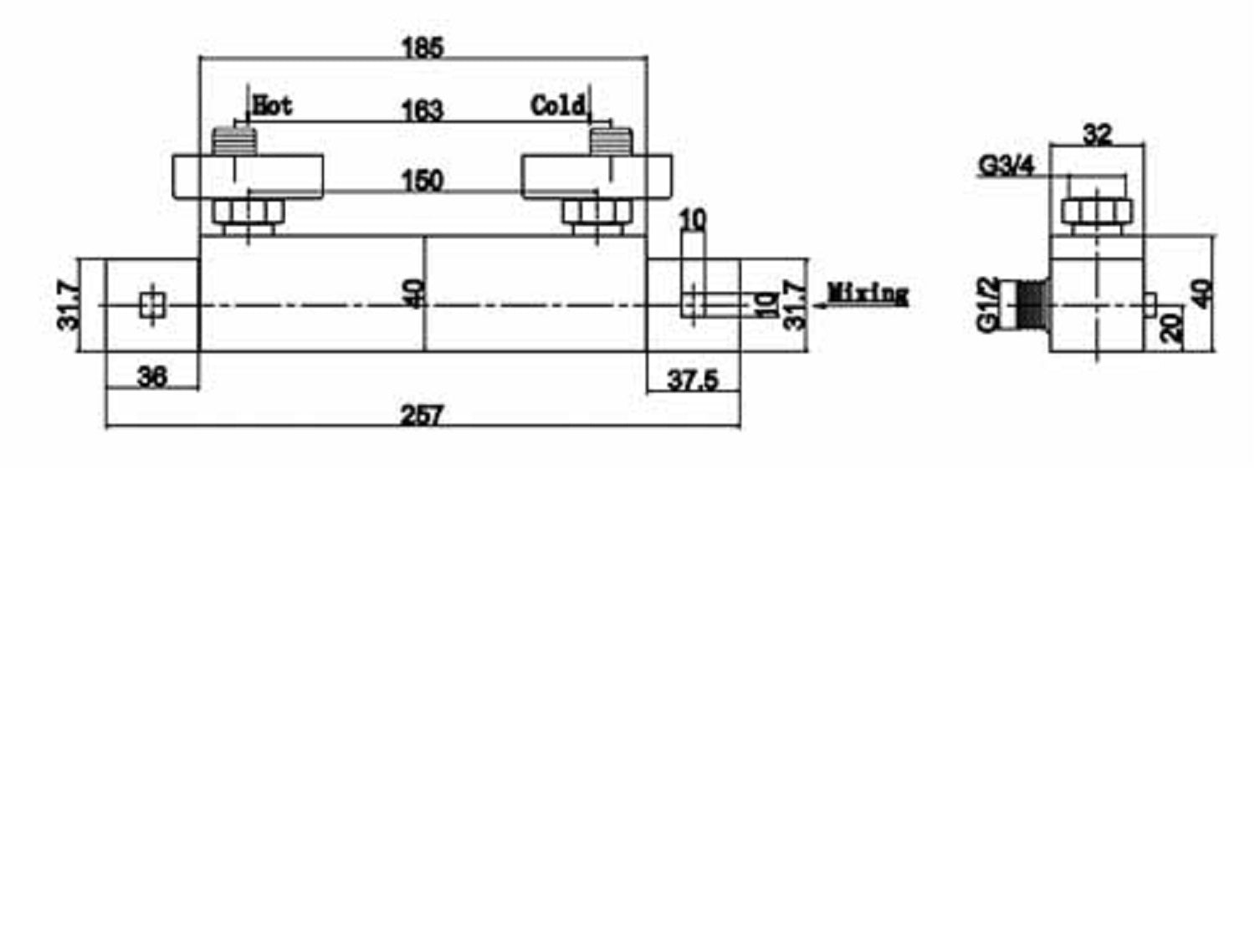

- packaging height: 80.0000 mm
- packaging length: 290.0000 mm
- packaging width: 80.0000 mm
- pipe centres mm: 150
- product depth: 40 mm
- product height: 32 mm
- product length: 26 mm
- product width: 257 mm
- shipping load type: Standard Parcel
- tmv2 approved: No
- tmv3 approved: No
- valve cartridge type: 1/4 Turn
- wras approved: No
