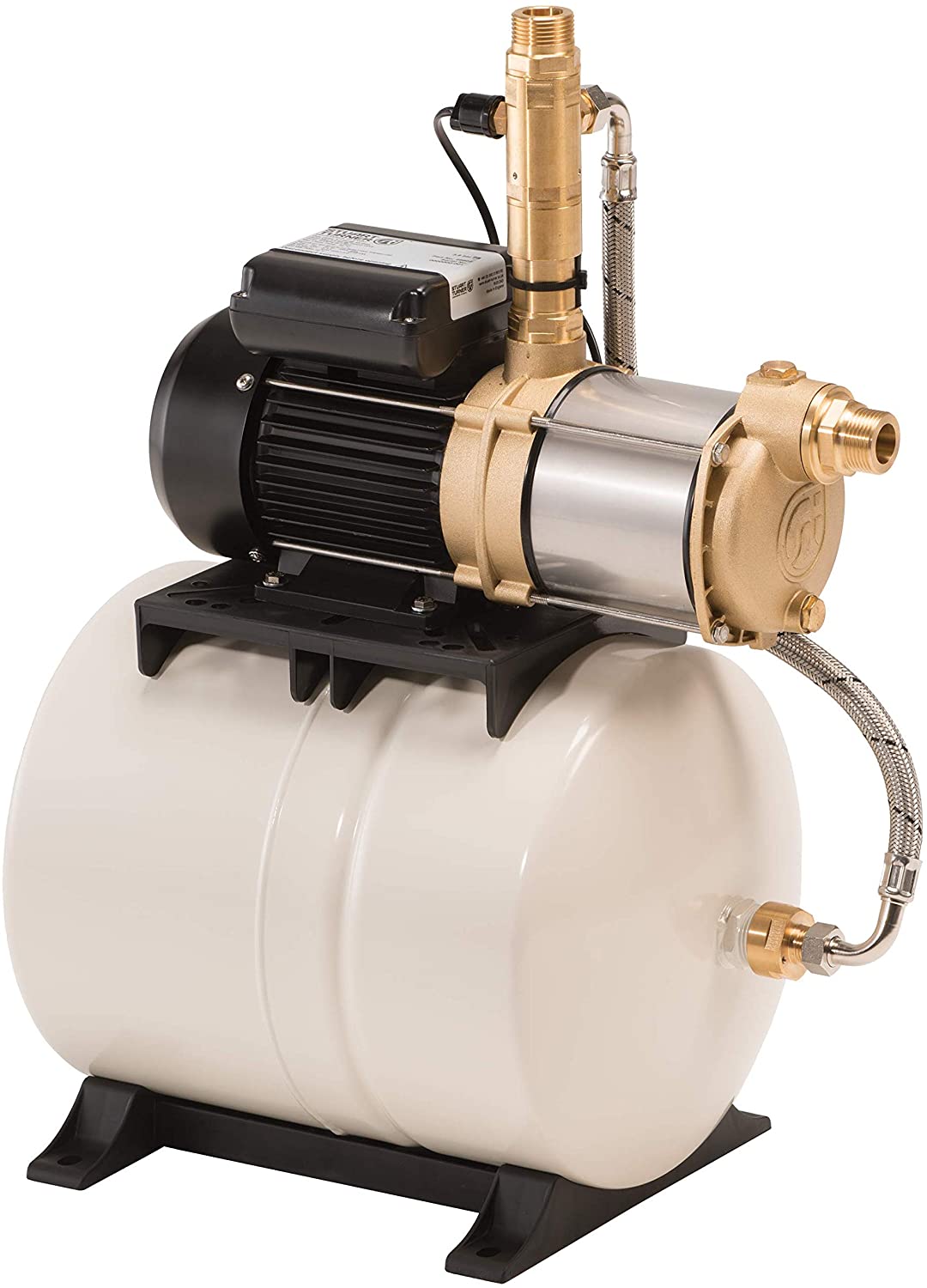

Stuart Turner Aquaboost ABP F120-50-1H-1 Pump Centrifugal Pressure Set 44622

The Stuart Turner Aquaboost Centrifugal Pressure Pump Set offers a comprehensive range of single pump systems for use in any larger domestic or light commercial setting. The multistage pump is constructed completely from brass and stainless steel, combining impressive aesthetics with a long life, while the attached 24-litre diaphragm tank provides stored water to act as a buffer. The set is an ideal choice for any low-pressure mains supply where cold water stores are needed to boost a combination boiler or unvented hot water cylinder.

There are four different units available in this particular range: the F20-130, F20-140, F20-150 and F20-160. The units are capable of maximum working pressures of between 600kPA and 900kPA and handling maximum flow rates of between 127 litres per minute and 153 litres per minute. Their primary function is to pump stored cold-water supplies to combination boilers or unvented hot-water cylinders which suffer from low or non-existent main supplies and pressures.

The body of the pump itself is constructed from brass and stainless steel, with dimensions of 521mm x 280mm x 647/667mm depending on the model chosen. The weight (including fittings) can also vary from 17.3kg to 25.9kg, while all units are capable of handling water temperatures of up to 35å¡C and withstanding ambient air temperatures of up to 40å¡C. Each of the pumps is mounted on a 24-litre water diaphragm, which has been approved by the Water Regulations Advisory Scheme (WRAS). Furthermore, all pumps carry CE certification and are fully tested to the highest standards.

The units all operate on a 230V / 50Hz power supply and come with all the necessary G1 flexible hoses and adaptors, meaning you can get your pump up and running in next to no time. Includes a 2 Year Guarantee.
