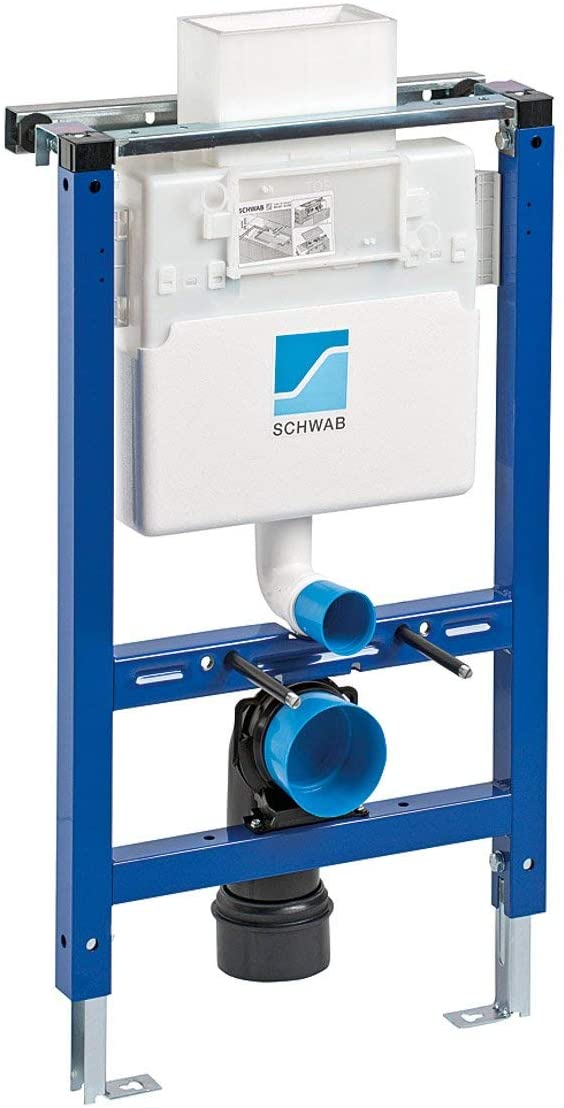

Schwab by Fluidmaster Short Concealed Wall Hung Toilet Mounting Frame + Cistern

Schwab by Fluidmaster Low Noise Short Wall Hung Toilet Mounting Frame with Cistern

The SCHWAB 187 concealed cistern with frame offers an innovative solution for smaller spaces. The design allows fitting of the frame under windows or key bathroom features, whilst retaining full usability and operation.

The 187 cistern features the silent Fluidmaster 747 valve, designed for ultra-simple maintenance and long-lasting performance.

• Model No: 187-747
• Activation system and mechanisms tested through 200,000 cycles and certified according to the highest European standards
• Filling and flushing valve fully factory tested and approved
• Water saving 6 / 3 litres
• Highly insulated concealed flushing cistern with silent filling valve
• Full range of flushing plates designed for any environment; contemporary, versatile and functional
• Easy installation of all components without using tools, support legs equipped with brake and rotating plate ( 90å¡)
• System fully insulated with polystyrene for long-lasting performance
• High capacity: correctly installed toilet bowl can easily carry a 400 kg load. Load capacity is tested in renowned German laboratories.
• Fixings and pan connector included
• All internal cistern fittings supplied
• DUPLO concealed systems enable very quick and simple installation, through use of innovative technology features
• Water saving with dual flushing valves installed in flushing cisterns
• Solid steel frame
• Internal overflow
• WRAS Approved product
• Suitable for use with wall hung toilets and bidets (not supplied)

• We suggest you ask a qualified plumber to install these item
• 10 Year 'fit & forget' Guarantee
• Please Note: Flushing plate sold separately - suitable for the Targa and Line flush plates
• Not Included: Toilet Pan and Flush Plate
