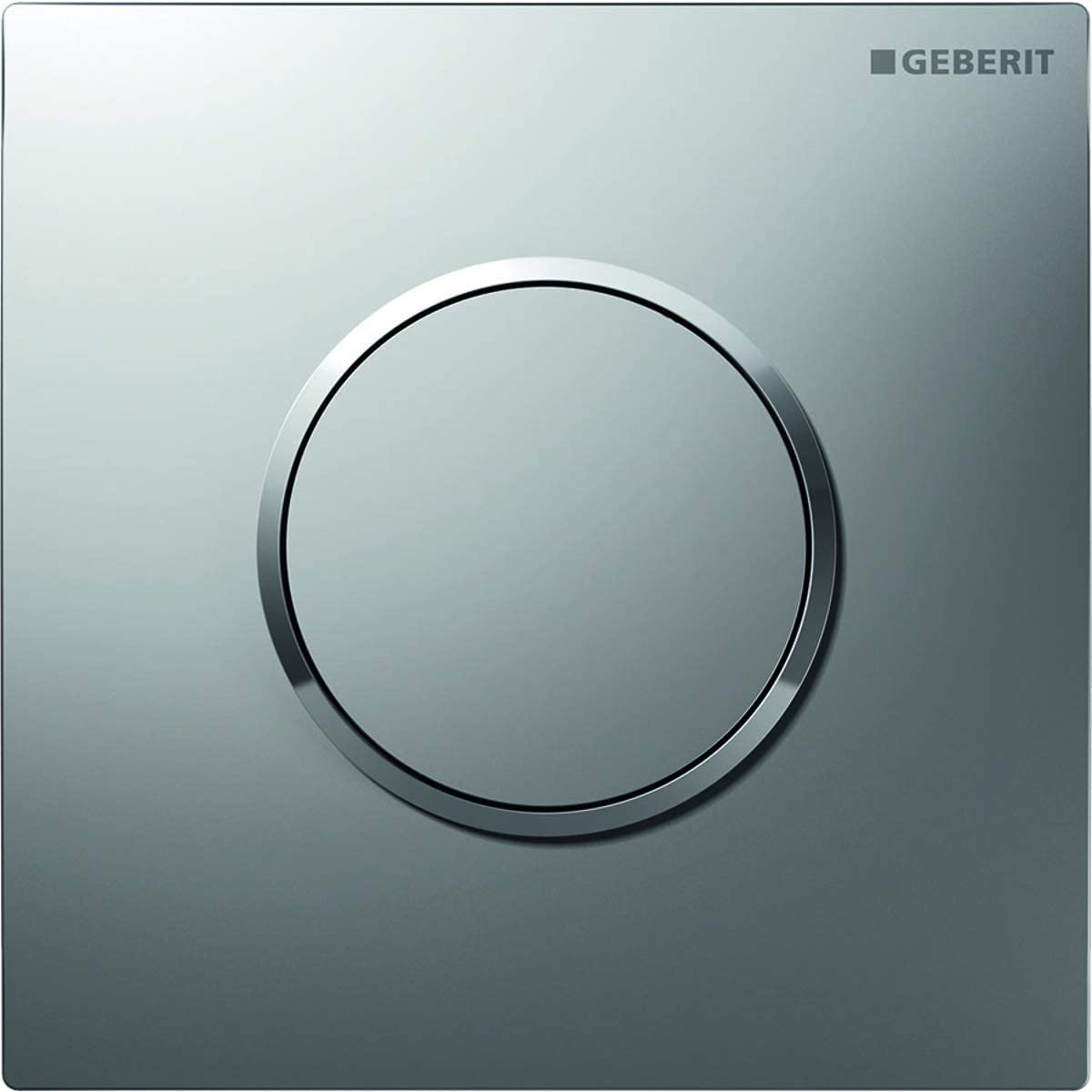

Geberit urinal control with pneumatic flush release, actuating plate type 10, colour: white/gold plated - 116.015.KK.1

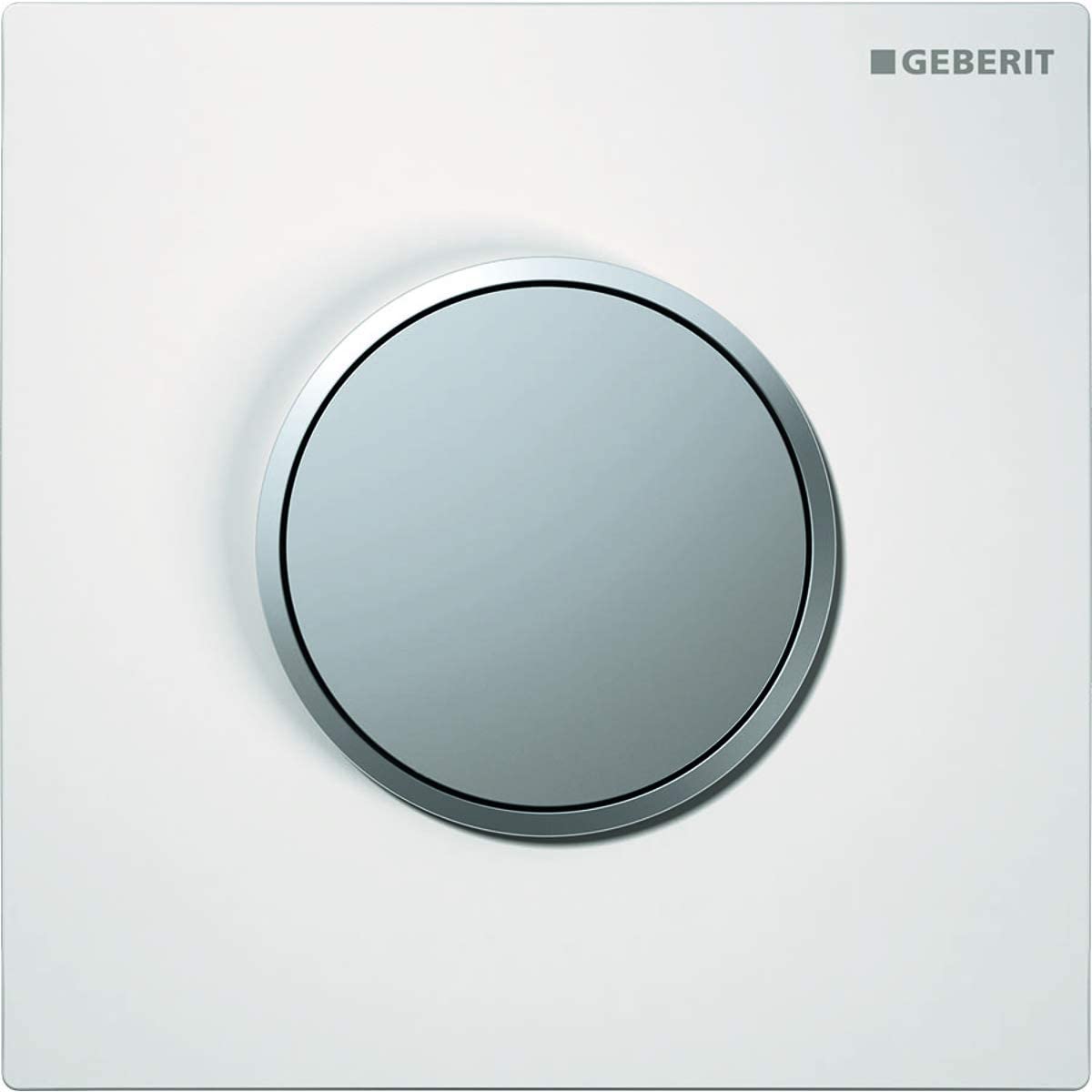

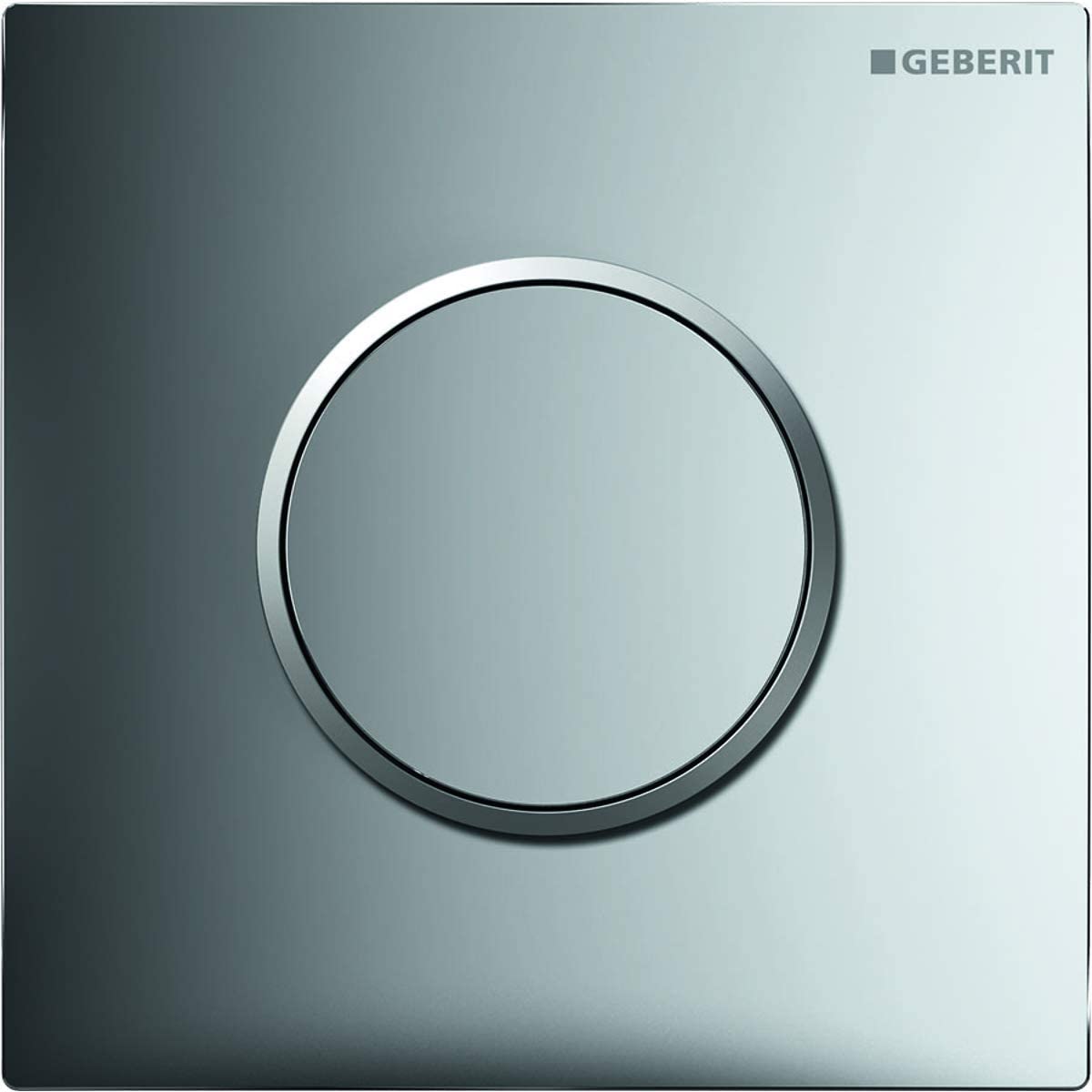

Colour:High-gloss Chrome-plated / Matt Chrome-plated

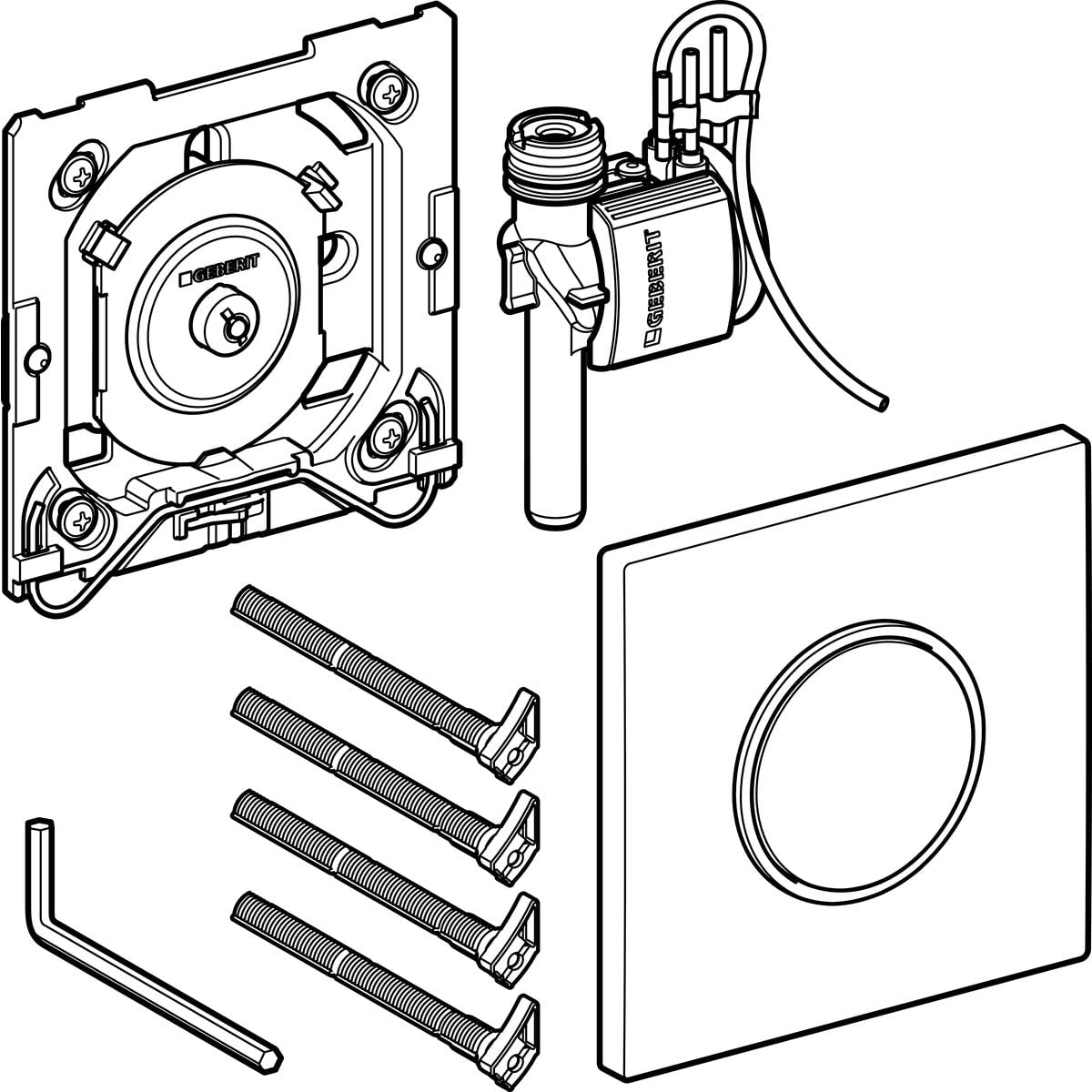

Applications For manual flushing of urinalsFÌÄå_r Geberit mounting elements for urinal with front operationFÌÄå_r Geberit mounting elements for urinal with operation from aboveFor installation in Geberit urinal control kits (from year of construction 2009)Scope of supplyOperating plate type 10Pneumatic flush actuator, pre-mounted on mounting framepneumatic valvefastening materialÌâåÊTechnical Dataflow pressure:ÌâåÊ ÌâåÊ ÌâåÊ ÌâåÊ ÌâåÊ 100-800 kPaÌâåÊMaximum test pressure water:ÌâåÊ ÌâåÊ ÌâåÊ ÌâåÊ ÌâåÊ ÌâåÊ ÌâåÊ 1600 kPaMaximum test pressure air / inert gas:ÌâåÊ ÌâåÊ ÌâåÊ ÌâåÊ300 kPaRelative humidity:ÌâåÊ ÌâåÊ ÌâåÊ ÌâåÊ ÌâåÊ < 100 %Maximum water temperature:ÌâåÊ ÌâåÊ ÌâåÊ ÌâåÊ 30 Ìâå¡CActive force:ÌâåÊ ÌâåÊ ÌâåÊ < 12 Nflow at 100 kPa without flow limiter:ÌâåÊ ÌâåÊ 0.3 l/sflow at 100 kPa with flow limiter:ÌâåÊ ÌâåÊ ÌâåÊ ÌâåÊ 0.24 l/sCalculation flow rate:ÌâåÊ ÌâåÊ ÌâåÊ ÌâåÊ 0.3 l/sMinimum flow pressure for calculated flow rate:ÌâåÊ ÌâåÊ ÌâåÊ ÌâåÊ100 kPaSpÌÄå_l time Setting range:ÌâåÊ ÌâåÊ ÌâåÊ 4/8/12 sÌâåÊPropertiesOperating plate with safety latchSpÌÄå_l time adjustment with air (pneumatic)Low trigger forceLow lifting motionSpÌÄå_lausl,sung when releasing the control buttonSpÌÄå_l quantity via throttle screwof the raw kit can be reduced to 0.5 l per flushFitting group II according to DIN 4109Ìâ
