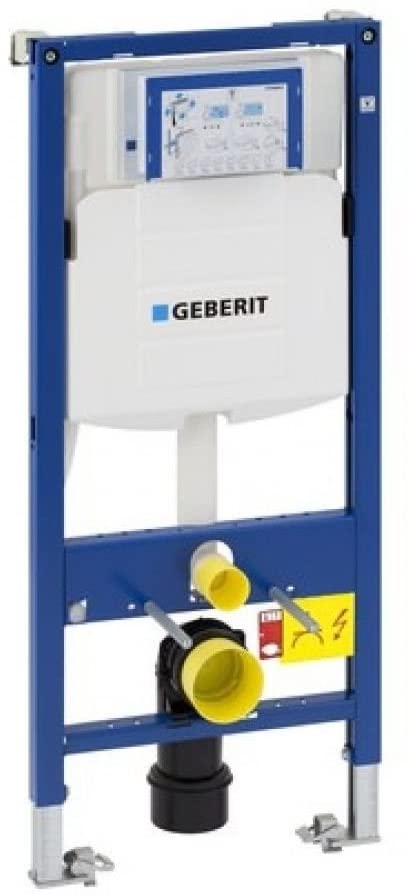

Geberit Sigma Duofix 1120mm Frame For Wall Hung WC Pan Including UP320 Cistern 111.383.00.5

Regular price £364.58 £0.00 Unit price per
Shipping calculated at checkout.

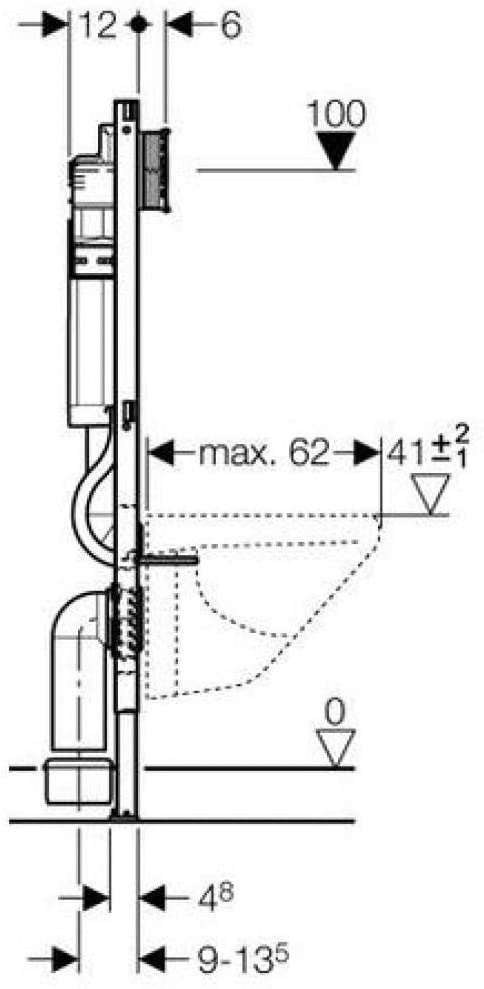

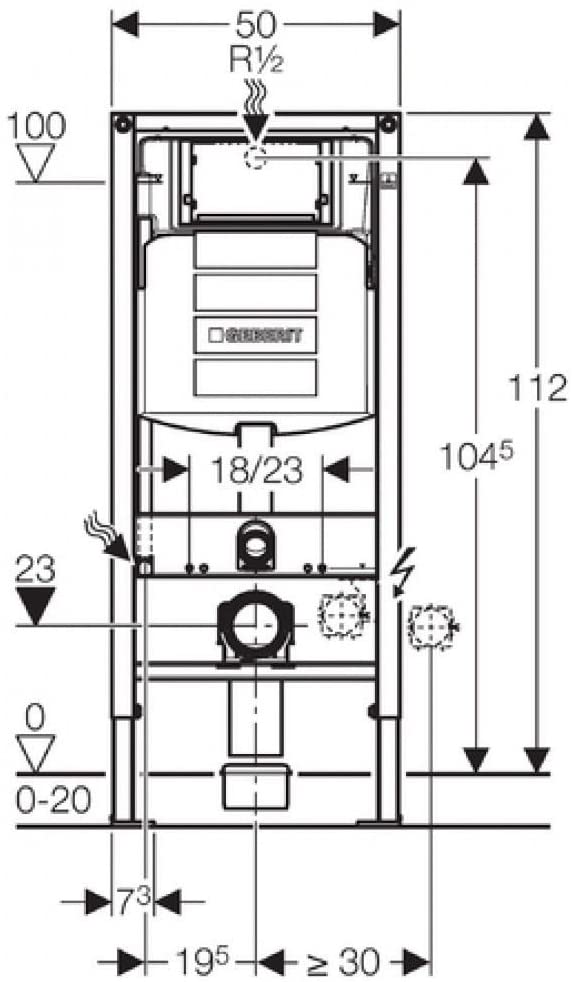

Geberit 111.383.00.5 Details. Geberit Duofix Wc Frame 1.12M Pre-Wall With UP320 Sigma Cistern 12cm . Application:. For installation of a wall-hung WC with bolt fixings set at 180 or 230 mm centres . For installation in a room-height Duofix system wall in front of a solid or drywall construction . For mounting in front of a solid or drywall construction . For a screed of 0 - 200 mm (not in room height applications) . For connecting Geberit AquaClean . Characteristics:. Self-supporting . Frame with C profile 40/40 mm . Powder-coated frame ultramarine blue . Galvanised leg supports steplessly adjustable 0 - 200 mm . Feet can be retracted 5 cm . Rotating foot plate for installation in UW50 and UW75 profiles . Frame with holes ÌÎÌ_ÌÎ_ 9 mm for fastening in wood frame construction . Sound-absorbing actuator rods tool-free fast adjustment. Concealed cistern fully insulated against condensation. Concealed cistern for tool-free mounting and maintenance . Frame height 1120 mm . With wall brackets to allow up to a 200 mm duct. For larger ducts up to 400 mm use extension bolts 111.887.00.1 . Tool-free fastening for outlet bend sound-absorbing adjustable in depth with 8 positions adjustable range 45 mm . Connection hose to angle stop valve can be screwed without tools . Water supply connection at centre back or at the top Geberit Sigma concealed cistern 12 cm (UP320) with front actuation . Dual flush with Sigma80 Sigma60 Sigma50 Sigma20 Sigma01 or Bolero flush plates . Single flush with Sigma10 Rumba Mambo or Tango flush plates . Dual flush with pneumatic button . Single flush with touchless flush or pneumatic buttons . The protection cover protects the service opening against moisture and dirt and can be mounted without tools and cut to length . Universal water supply connection compatible with MeplaFix can be mounted and operated without tools . Self-locking feet for tool-free alignment of the frame (friction feet have to be locked with spanner) . For pans with contact surfaces smaller than 170 mm (see accessory 111.847.00.1) . Flush valve features settings to enable either a 6l and 3l flush or a 4.5l and 3l flush. For flush volumes of 4l and 2l a low flush beaker is required (241.894.00.1) . Item Contents:. 2 Duofix PreWall brackets for system . Water supply connection R 1/2" male BSP parallel thread with integrated angle stop valve and hand wheel . Conduit pipe for the water supply connection of Geberit AquaClean Flush bend . Protection plug. Protection housing for service opening 2 threaded rods M12 for ceramics fastening . WC connection set ÌÎÌ_ÌÎ_ 90 mm . WC outlet bend HDPE ÌÎÌ_ÌÎ_ 90 mm . Adaptor sleeve HDPE ÌÎÌ_ÌÎ_ 90/110 mm . Fastening material . To be installed with a check valve or similar providing backflow prevention protection . Excluded: Flush plate . This product comes with a 1 year manufacturers warranty against failures due to manufacturing defects

  • Self-supporting
  • Sound-absorbing actuator rods tool-free fast adjustment
  • Concealed cistern fully insulated against condensation
  • Dual flush with pneumatic button
