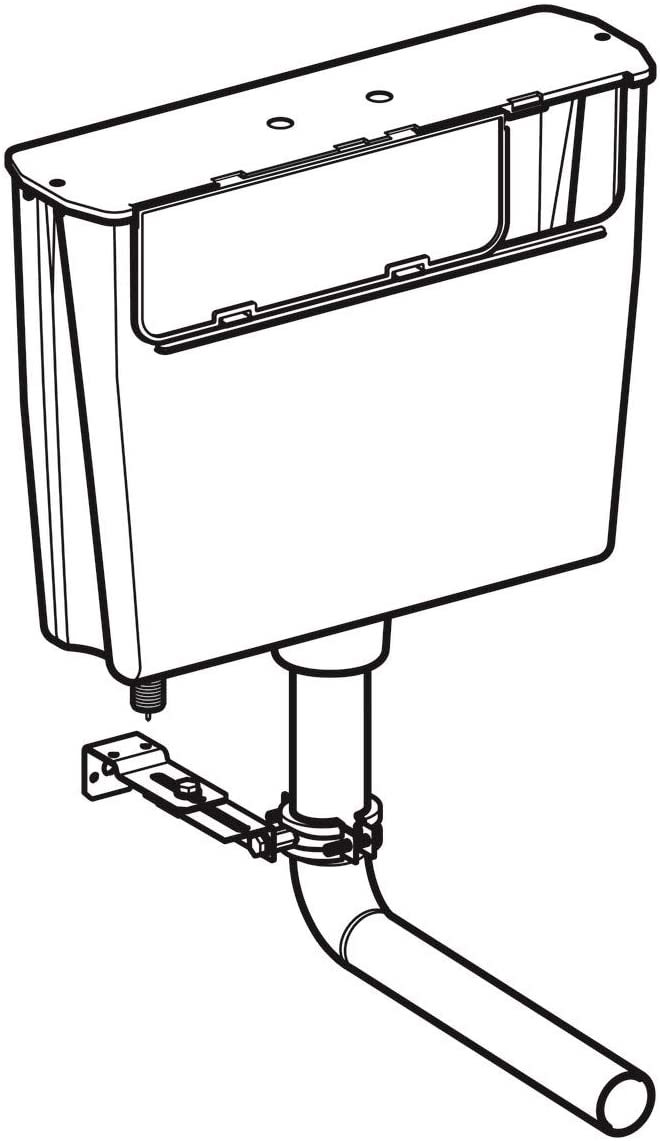

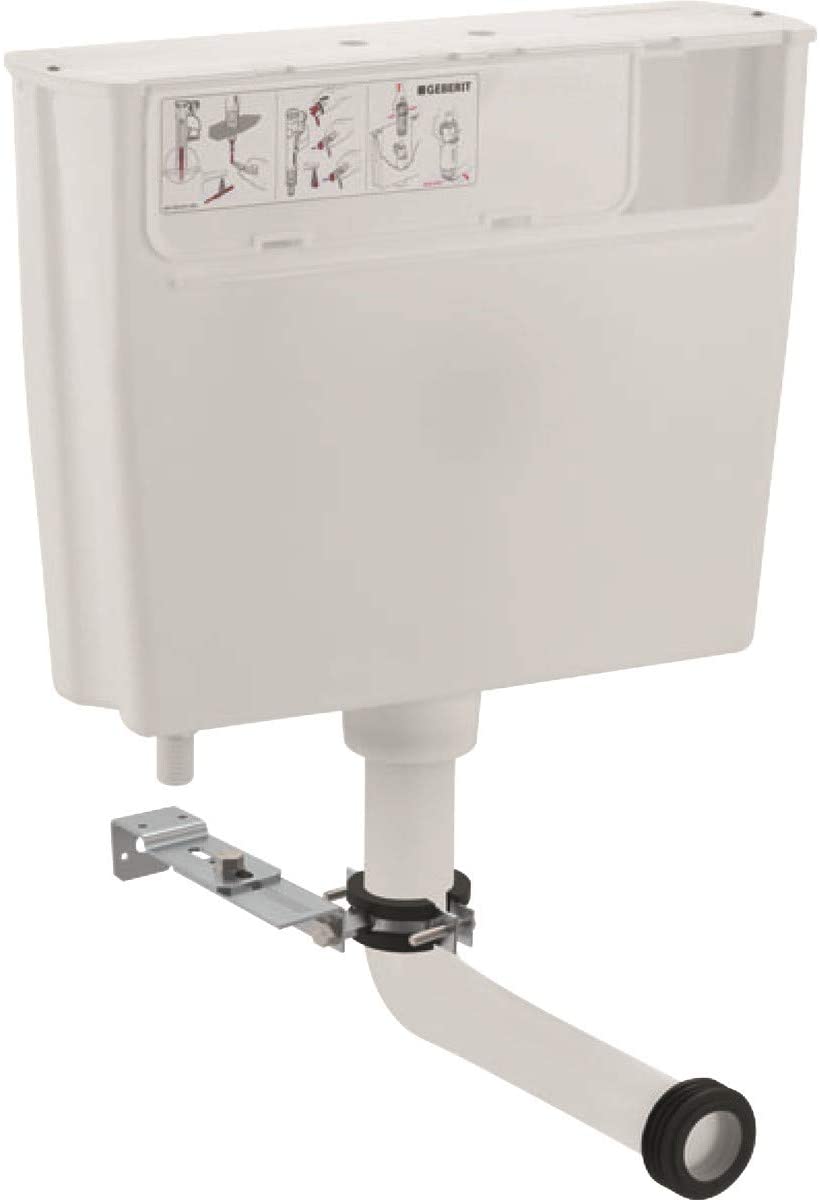

Geberit Low Height Furniture Concealed Toilet Cistern Front Access Bathroom

This cistern is designed to be installed in low height bathroom furniture and must not be installed behind the wall


Designed for installation within a set-up of modern bathroom furniture and floor-standing WCs.


With front access to the cistern


Offering a water supply connection on the bottom left and a factory set flush volume of 5.8 litres


Compatible with all pneumatic actuators - use with Geberit Type01 single flush buttons


Comes with a 90-degree flush bend

Fastening material for flush pipe


Fastening material

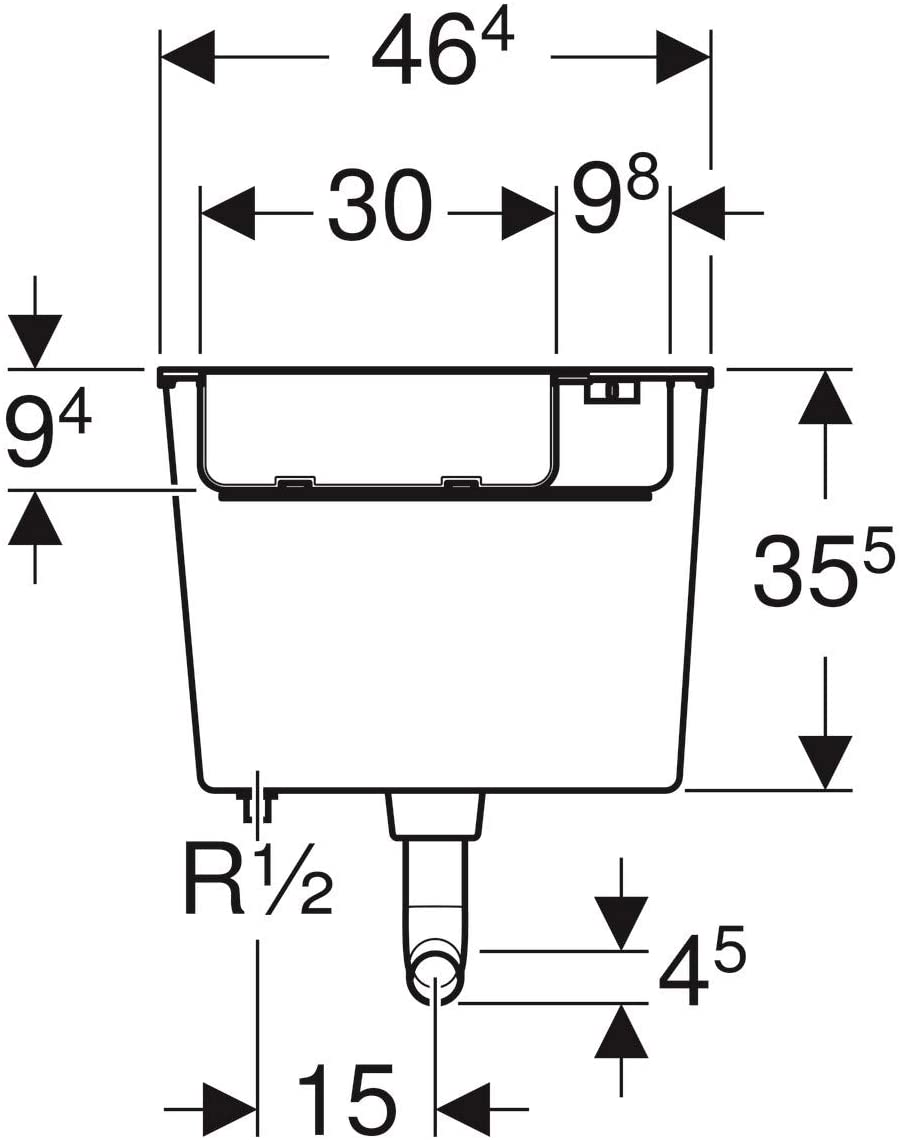

Height355mm
Width464mm

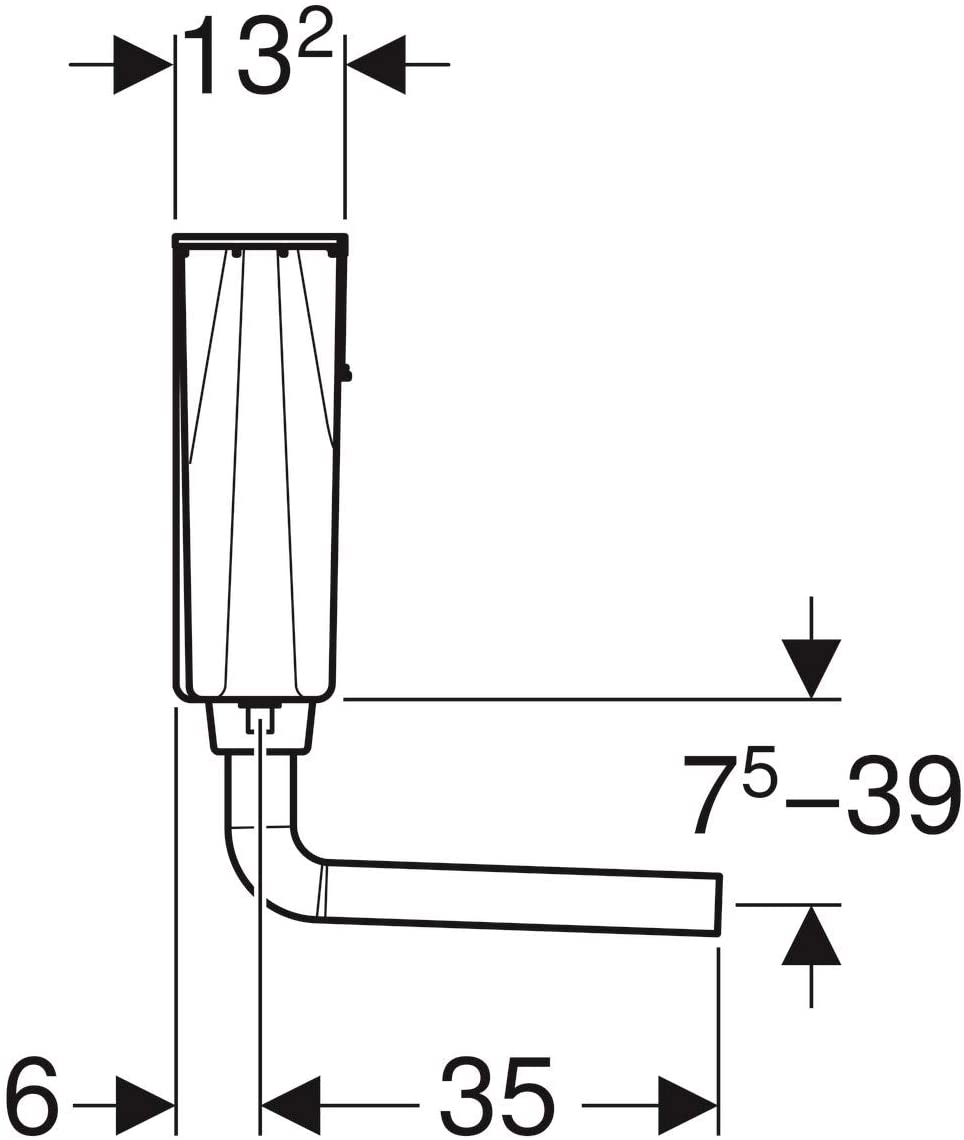

Depth132mm


Flow pressure 0.1-10 bar
Maximum operating temperature, water 25 í«̴́C
Flush volume, factory setting 5.8 l
