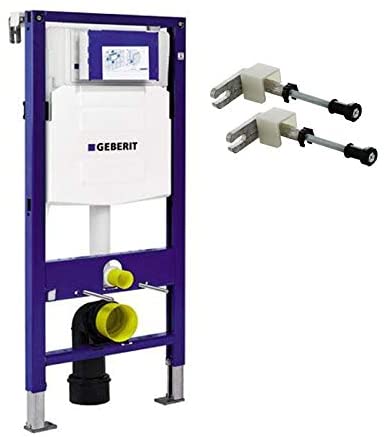

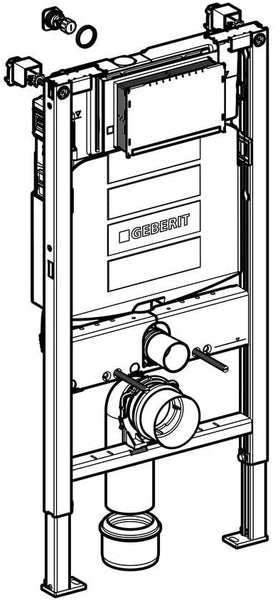

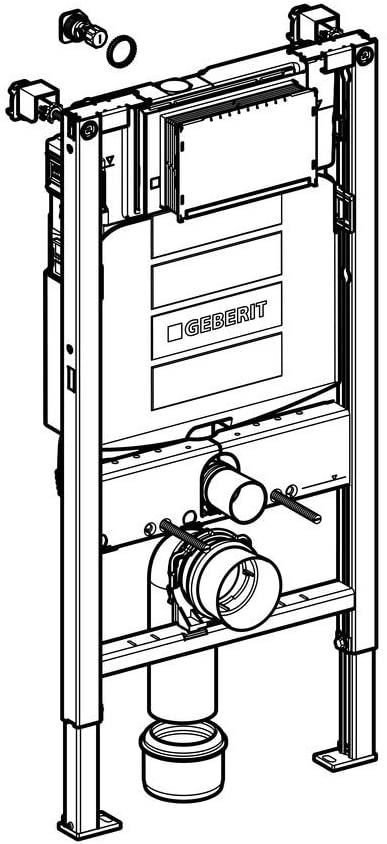

Geberit Duofix 1.14m WC Toilet Frame UP320 Sigma Cistern Wall Brackets + WC Bend
The Geberit Duofix frame system allows you to design and create the bathroom of your dreams.
Hidden behind walls and tiles Geberit Duofix supports wall hung sanitaryware and includes an integral cistern.
The result is a clean and modern finish with no visible pipework. The Geberit Duofix frame is the backbone to Geberit's bathroom system.
The sturdy metal frame has been designed to support wall hung sanitaryware without the need for supporting walls.
Frames are available for toilet pans hand washbasins bidets and urinals.
The Geberit Duofix frame allows designers to create eye-catching new bathrooms from the bare minimum without expensive structural work.
Frames can simply be bolted to the floor and placed within or attached to walls. The frame system can be used in the tightest of spaces including corners allowing designers the freedom to create stunning bathrooms without compromise.
Concealed cistern with front actuation
With front access to cistern internals
With wall fixing brackets
With 90 degree drainage bend
Suitable for Sigma flush plates and remote buttons
Galvanised leg supports, adjustable 0 - 200 mm
Feet can be retracted 5 cm
Rotating foot plate, for installation in UW50 and UW75 profiles
Frame with holes ÌÎÌ_ÌÎ_ 9 mm for fastening in wood frame construction
Sound-absorbing actuator rods, tool-free, fast adjustment
Easy to clean coating on glass and metal
Concealed cistern fully insulated against condensation
Dual flush saves water with buttons for 3 or 6 litres of water

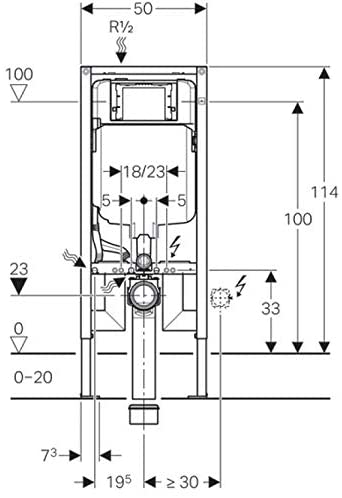

Specifications of the Geberit Duofix
Finish: Galvanised Steel
Flow Pressure: 0.1 - 10 bar
Maximum Water Operating Temperature: 25í«̴́C
Factory Setting Flush Volume
- Concealed cistern with front actuation
- With front access to cistern internals
- With wall fixing brackets
- With 90 degree drainage bend
