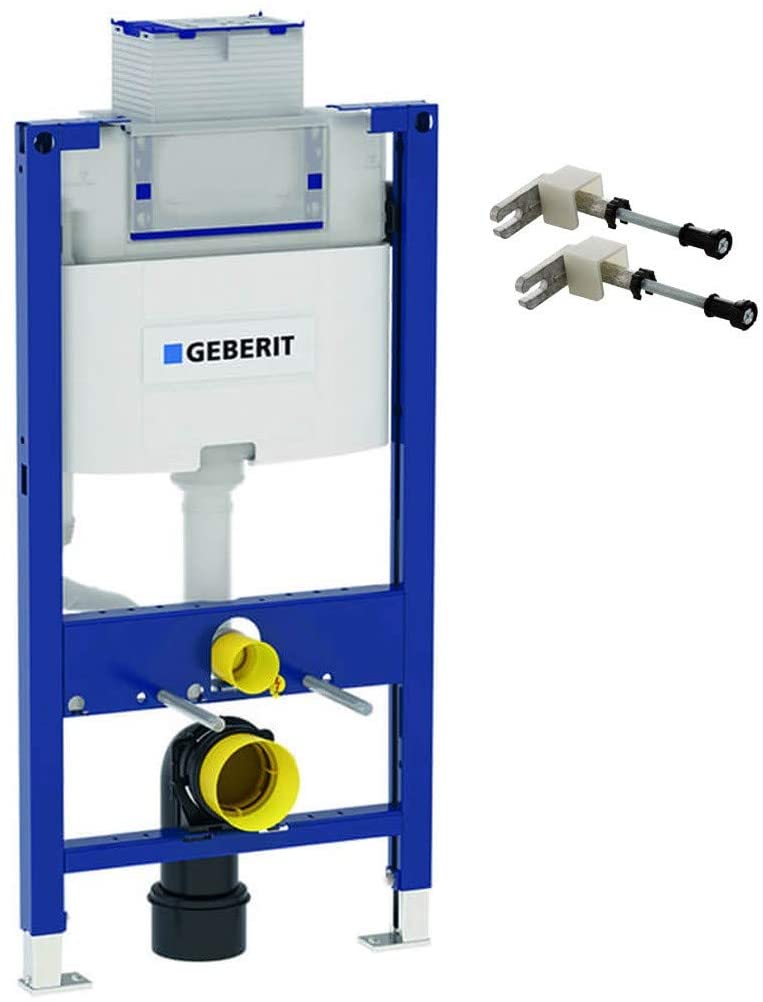

Geberit Duofix 0.98m WC Toilet Frame 12cm Omega Cistern Wall Brackets + WC Bend

The Geberit Duofix frame system allows you to design and create the bathroom of your dreams.

Hidden behind walls and tiles Geberit Duofix supports wall hung sanitaryware and includes an integral cistern.

The result is a clean and modern finish with no visible pipework. The Geberit Duofix frame is the backbone to Geberit's bathroom system.

The sturdy metal frame has been designed to support wall hung sanitaryware without the need for supporting walls.

Frames are available for toilet pans hand washbasins bidets and urinals.

The Geberit Duofix frame allows designers to create eye-catching new bathrooms from the bare minimum without expensive structural work.

Frames can simply be bolted to the floor and placed within or attached to walls. The frame system can be used in the tightest of spaces including corners allowing designers the freedom to create stunning bathrooms without compromise.


The Geberit Duofix Wall-Hung WC Frame With Omega Cistern 120mm is a wall-hung cistern that can drastically improve the function of your toilet.


For installation in part or full height room installations


Concealed cistern with front actuation


With front access to cistern internals


With wall fixing brackets


With 90 degree drainage bend


Suitable for Omega flush plates and remote buttons


Rotating foot plate, for installation in UW50 and UW75 profiles


Frame with holes ÌÎÌ_ÌÎ_ 9 mm for fastening in wood frame construction

Sound-absorbing actuator rods, tool-free, fast adjustment

Easy to clean coating on glass and metal

Concealed cistern fully insulated against condensation


Dual flush saves water with buttons for 3 or 6 litres of water


Specifications of the Geberit Duofix

Finish: Galvanised Steel
Widt
