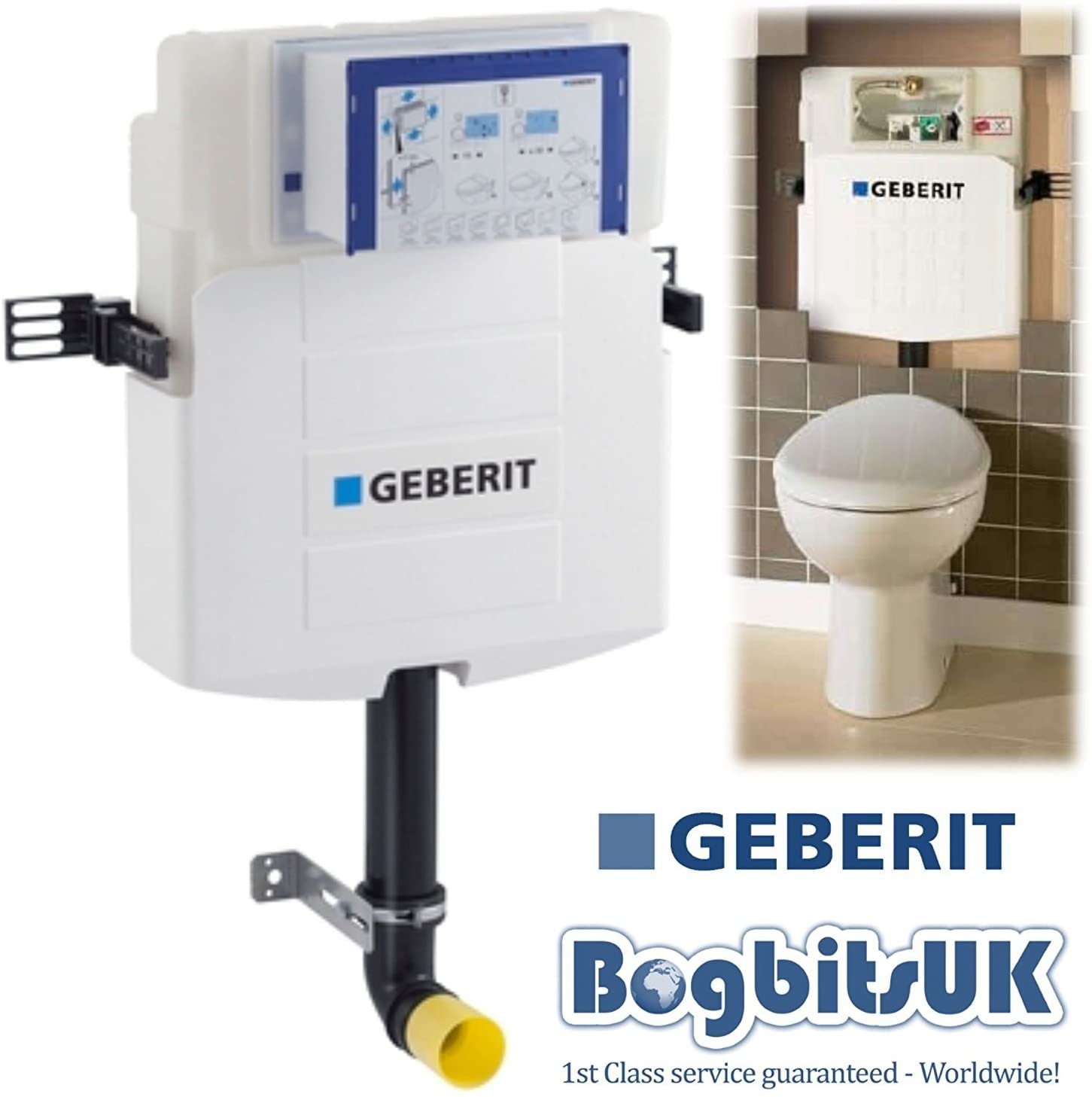

Geberit 109.309.00.5 Sigma UP320 Dual Flush Concealed Cistern White

Characteristics
; Concealed cistern fully insulated against condensation
; Front actuation only
; Protection cover for service opening can be mounted without tools and cut to length
; Dual flush with Sigma80, Sigma60, Sigma50, Sigma20, Sigma01 or Bolero flush plates
; Dual flush with dual flush pneumatic and mechanical buttons
; Single flush with Sigma10 Rumba Mambo or Tango flush plates
; Single flush with touch-less flush or pneumatic buttons
; Water supply connection at center back or at the top
; Flush bend has maximum 8 cm adjustment. Flush can be cut down by maximum of 8 cm

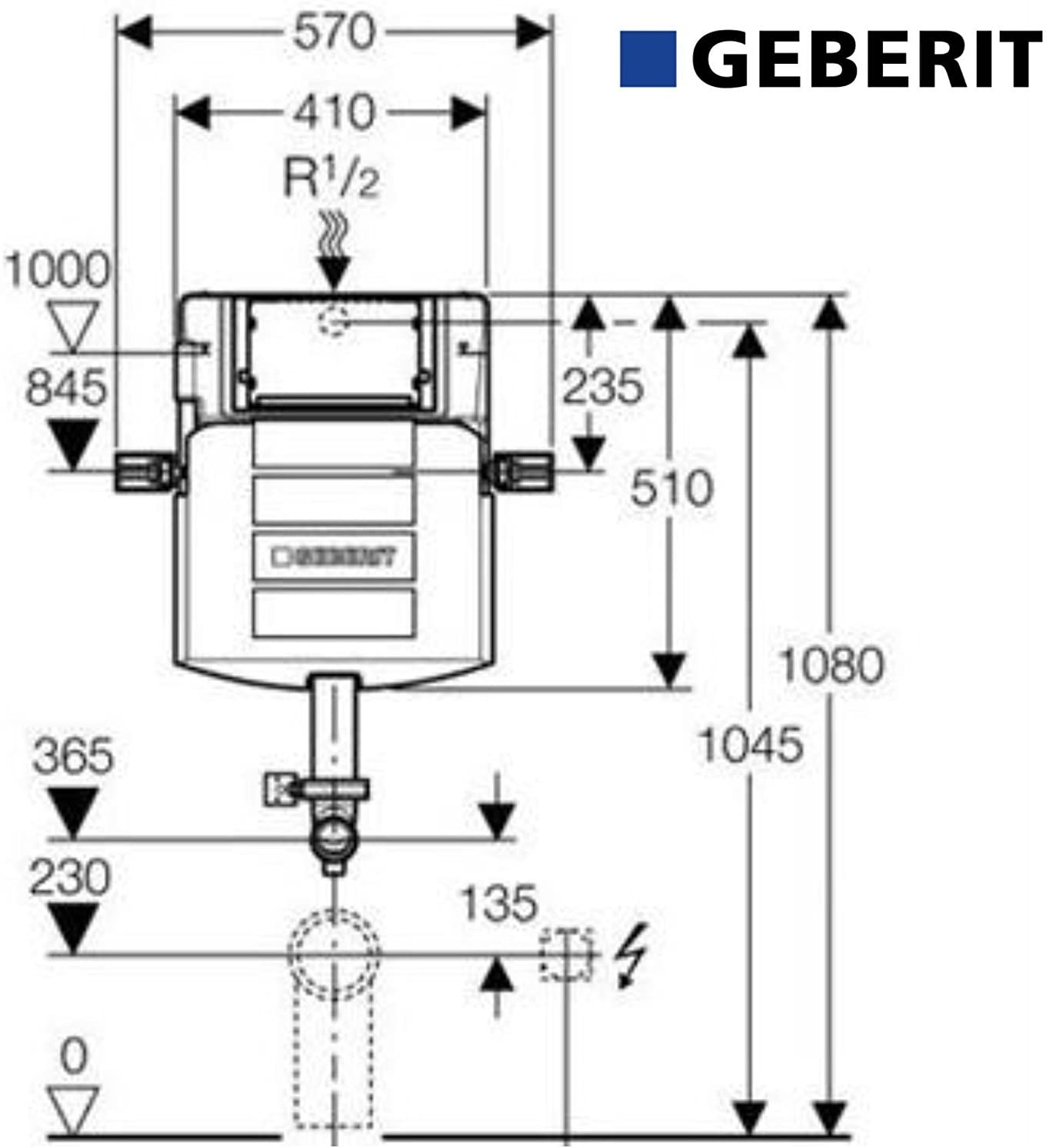

; Installation height 1080 mm (can be cut down depending on the WC pan performance)
; Minimum install height 670 mm from center of flush pipe to top of cistern
; Maximum total height is 720 mm from center of flush pipe to top of cistern
; Fastening bracket adjustable in depth
; Cistern can be reversed to give access from behind in a duct situation when flushed with pneumatic buttons or touch-less flush
; Flush valve features 6l and 4.5l flush settings to enable either a 6l and 3l flush or a 4.5l and 3l flush. For flush volumes of 4l and 2l a low flush beaker is required (241.894.00.1)

Item Contents
; Water supply connection R 1/2" male BSP parallel thread
; Protection housing for service opening
; Flush pipe ÌÎÌ_ÌÎ_ 45 mm
; Fastening for flush bend
; Protection plug for flush pipe
; 2 slotted flat irons
; 2 fastening brackets pre-mounted
; Fastening material
; To be installed with a check valve or similar providing backflow prevention protection
