Arley Modular Bathroom Pod Jaspe

Product Information

• Length 1640 mm
• Width 1625 mm
• Height̴Ì_ 2260 mm
• Surface int. 1.70 m2
• Weight̴Ì_ 210 kg
• Door̴Ì_ 600 mm

Features

DOOR

• ̴Ì_Door frame painted white (RAL9010)̴Ì_
• ̴Ì_Lacquered hinge door (width 800 mm)
• ̴Ì_Lever door lock
• ̴Ì_1 Robe hook

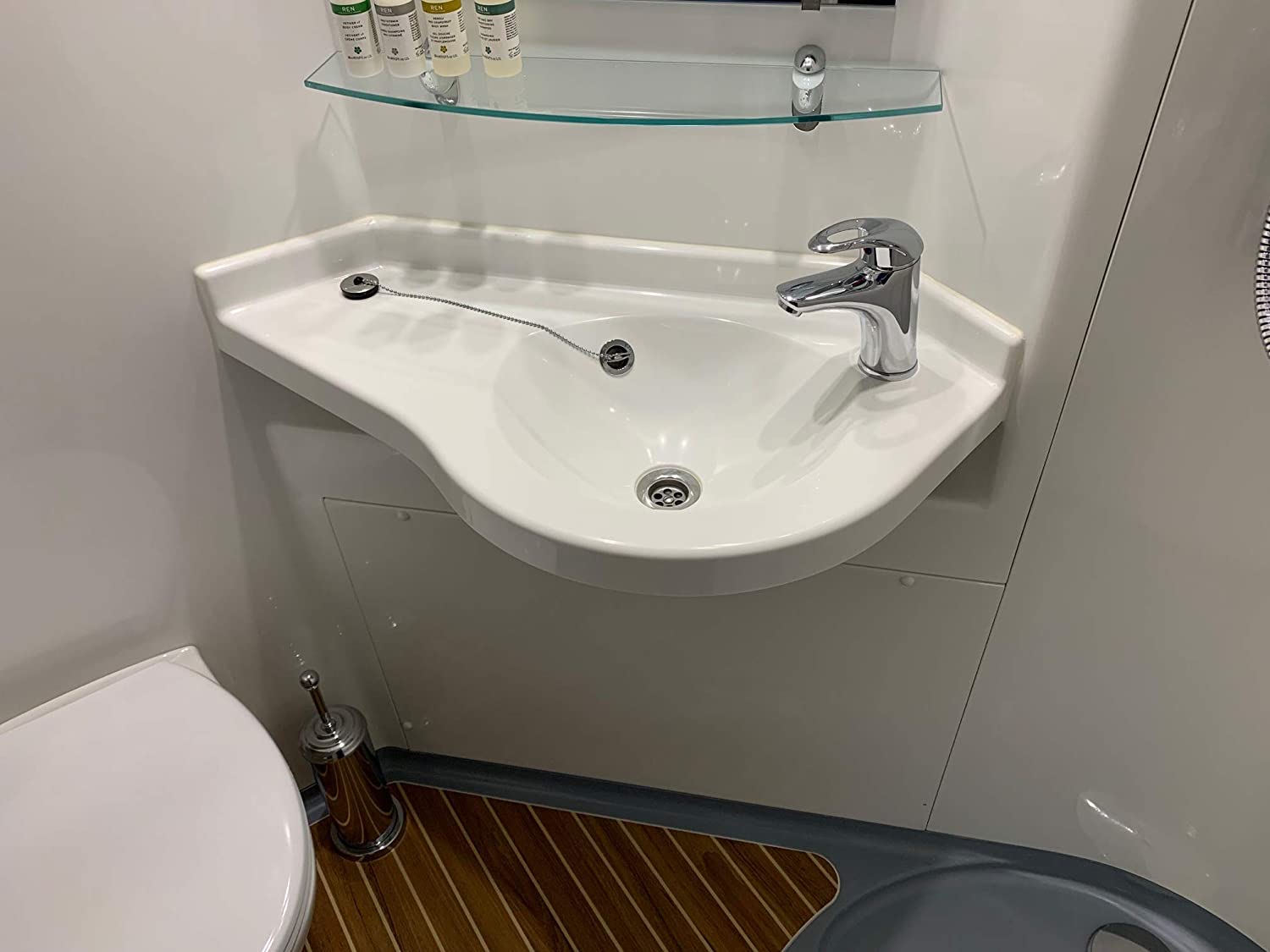

BASIN

• ̴Ì_Concrete resin basin with a gel coat fi nish

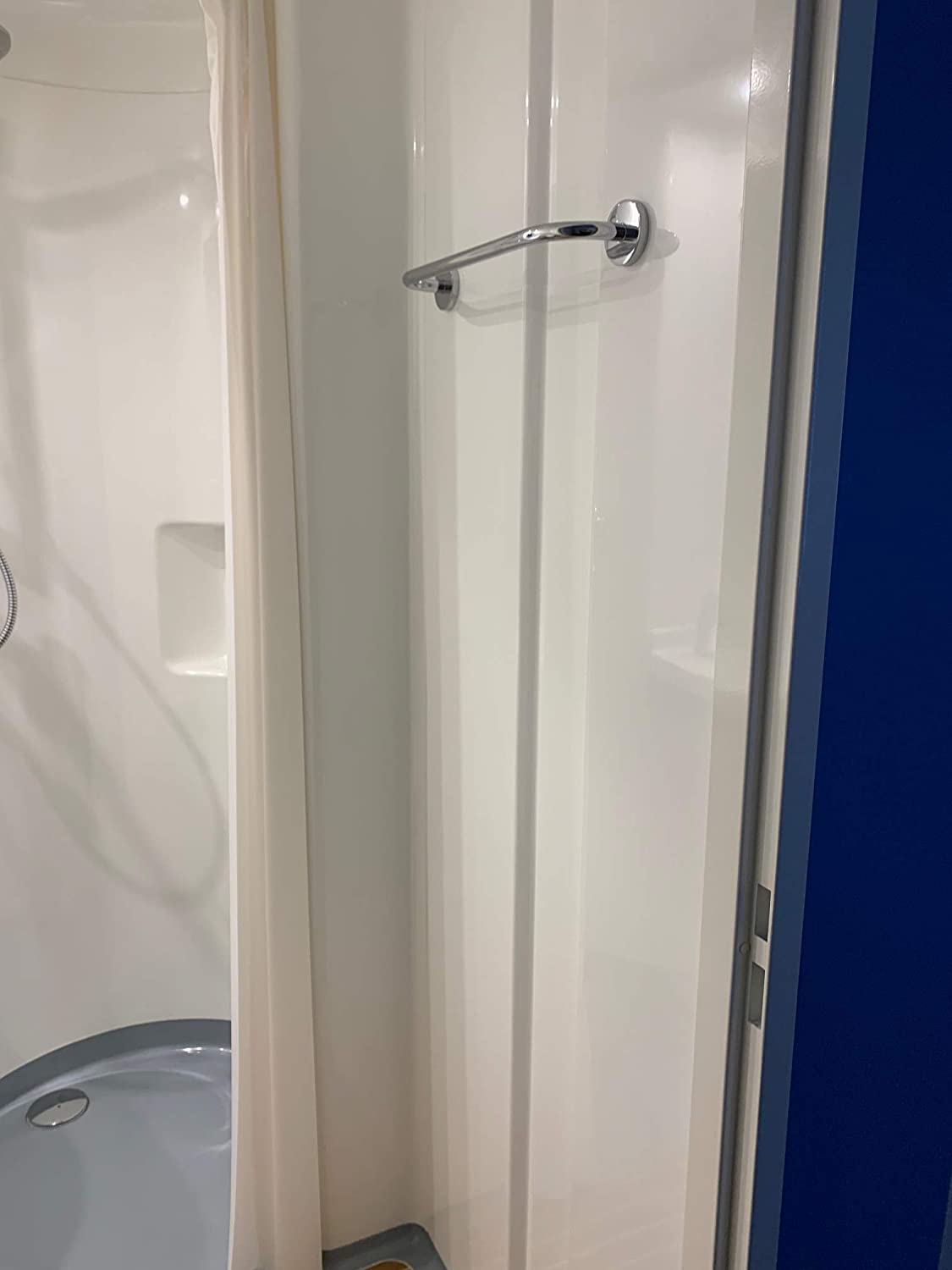

• ̴Ì_1 Tower rail
• ̴Ì_Mixer tap
• ̴Ì_Waste + siphon

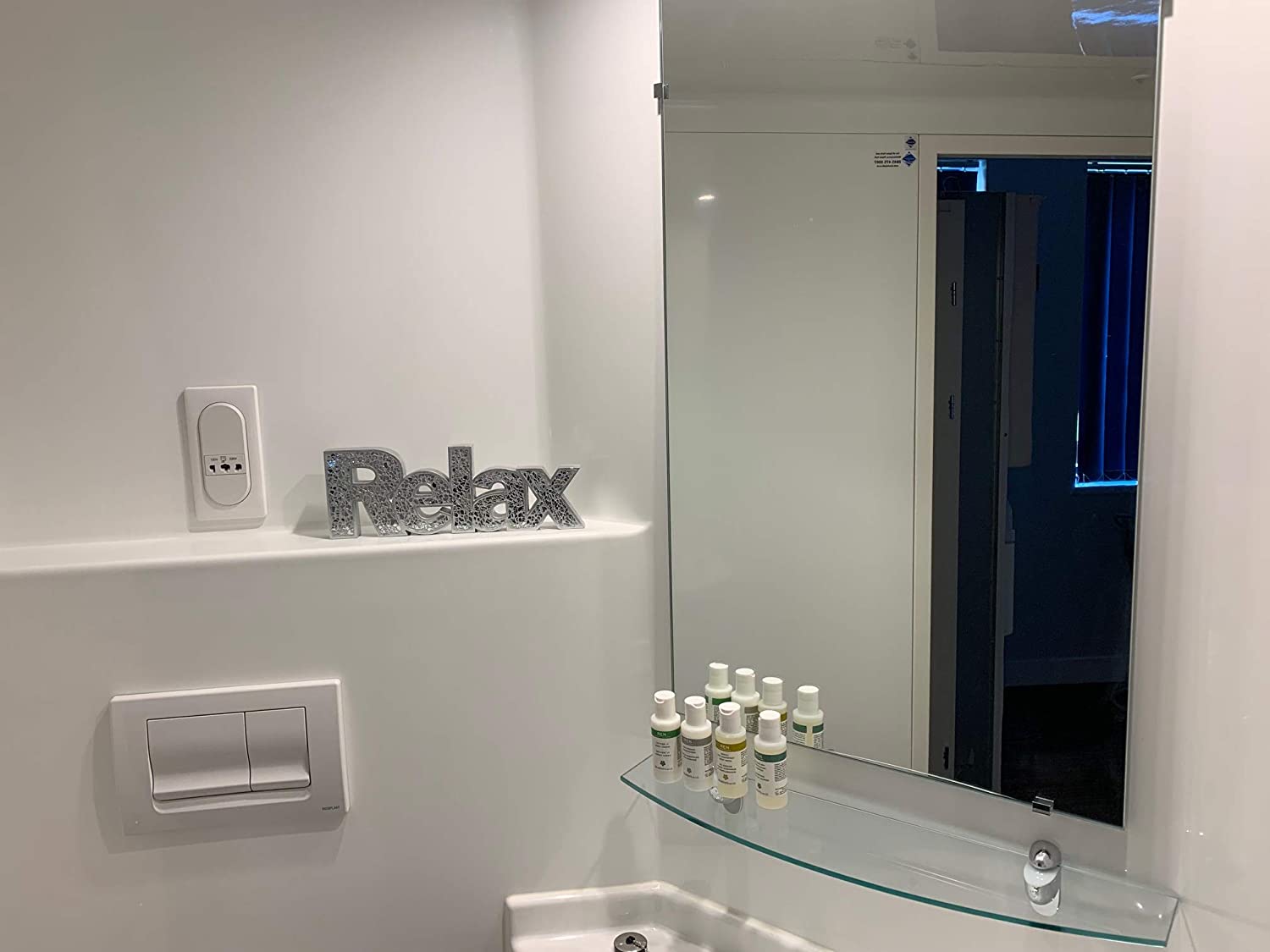

• ̴Ì_Fixed mirror 800 x 480 mm

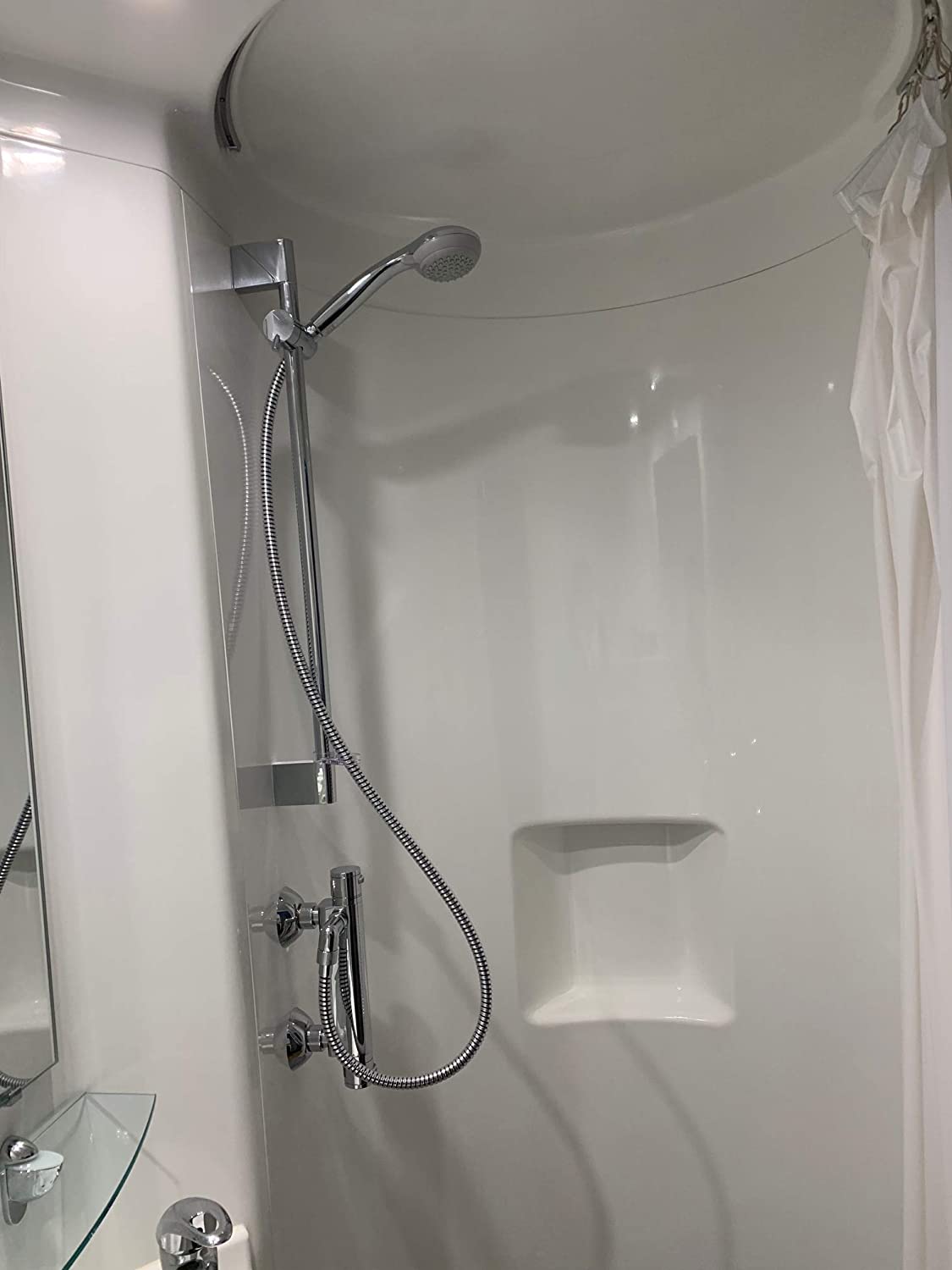

SHOWER

• ̴Ì_Bar valve incorporating fexible hose and head
• ̴Ì_Shower curtain mounted on aluminium rail
• ̴Ì_Shower mixer
• ̴Ì_Storage shelf
• ̴Ì_1 Soap dish

WC

• ̴Ì_WC Wall hung
• ̴Ì_Double seat thermoset (white)
• ̴Ì_Toilet roll holder
• ̴Ì_Cistern Flush 3/6 L
• ̴Ì_Flush panel

Structure

• GRP resin, non-slip foor̴Ì_

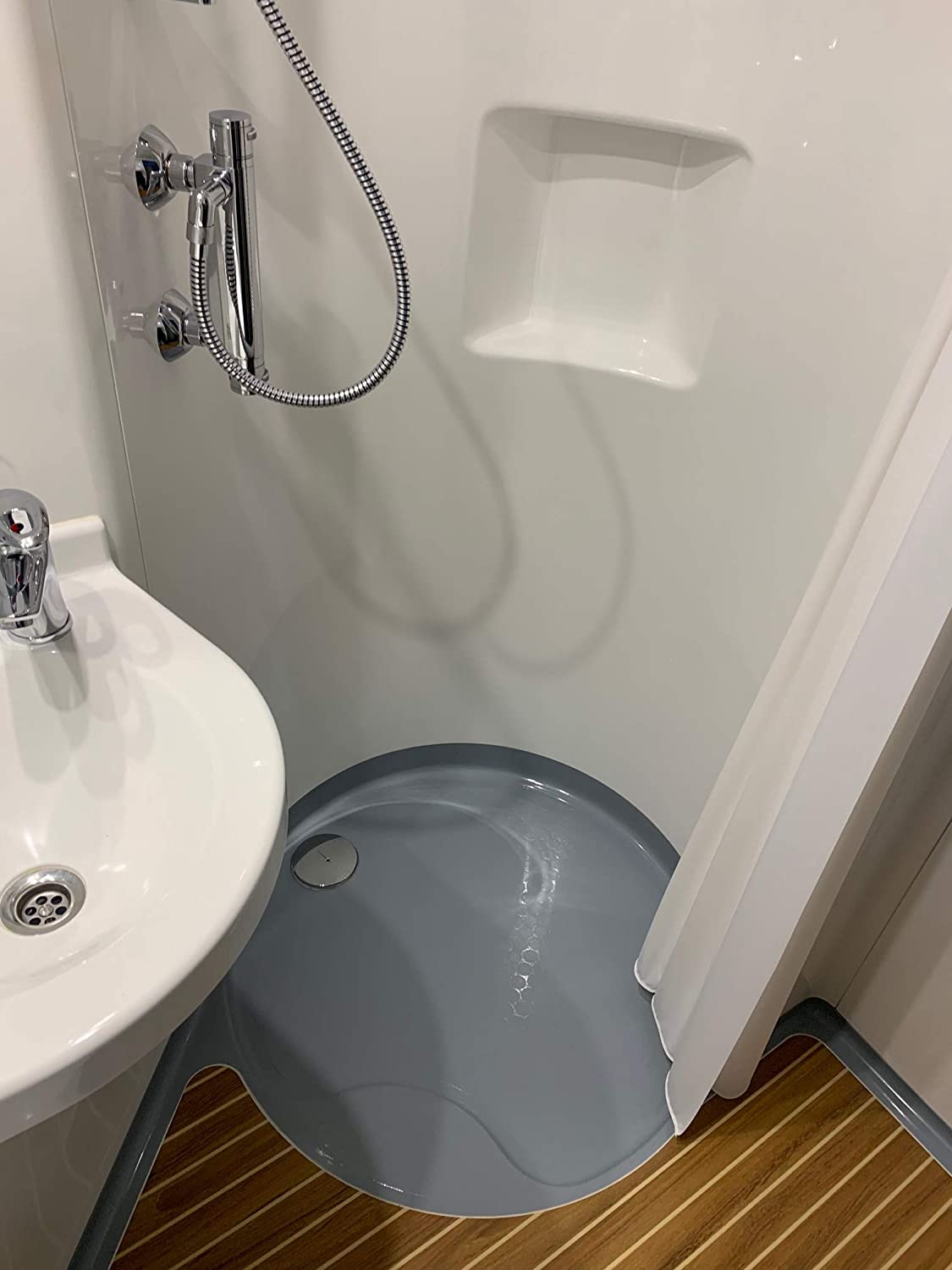

• Shower tray built into the structure
• Sealing between the walls provided by a compressed seal
• Surface texture: gel coat (M2 fre rating)
• The bathroom pod is fully demountable

Connections

ELECTRICITY

• ̴Ì_IP65 2 LED spot lights
• ̴Ì_Earthing: cable section 6 mm̴_
• ̴Ì_VMC self-adjusting 30 m3 / h - 125 mm
• ̴Ì_Connection to the junction box located in ceiling or access area
• ̴Ì_Hot / Cold multilayered, pex pipe with crimped connections to 1/2‰ۡó»‰ۡó»
• ̴Ì_Basin and PVC shower waste 40mm and 32mm WC 100mm

DELIVERY AND INSTALLATION (EXCLUDING CONNECTION TO SERVICES) IS INCLUDED̴Ì_ IN THE PRICE, MAINLAND UK ONLY.
