Geberit Universal Urinal Installation Set - Flush Bathrooms

Geberit 116.001.00.1 Details Geberit Urinal Installation Set Universal - Electronic Application

• For concealed installation in solid constructions
• For accommodating the touchless and pneumatic urinal controls
• For mains fed water with urinals Ideal Standard Jasper Morrison Villeroy and Boch Omina Classic (#7557) Duravit Starck 3 (#082135) Kohler Odela
• For tank fed water supply (note: Geberit urinal controls need a minimum 1 bar supply)

• Water connection at the top centre
• Water supply connection 1/2" (compatible with MeplaFix)
• Water supply connection can be installed without tools
• Water supply connection radially sealing
• Stop valve with throttle pre-mounted
• Pre-mounted conduit pipe for rinsing the pipe
• Terminal provided
• The protection cover protects the service opening against moisture and dirt and can be mounted without tools and cut to length

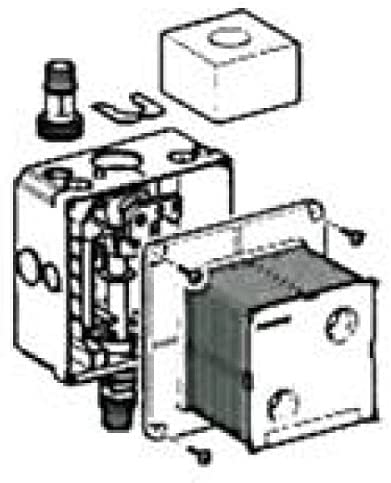

• Concealed housing with water section
• Protection box with cover

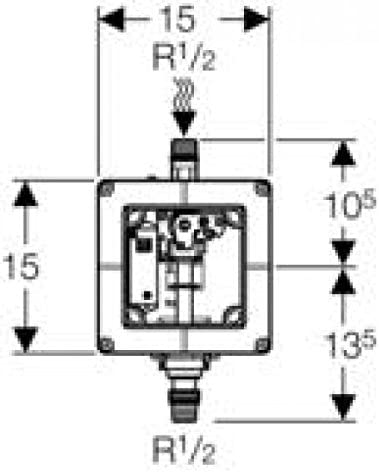

• Water supply connection R 1/2"
• To be installed with a check valve or similar providing backflow prevention protection
