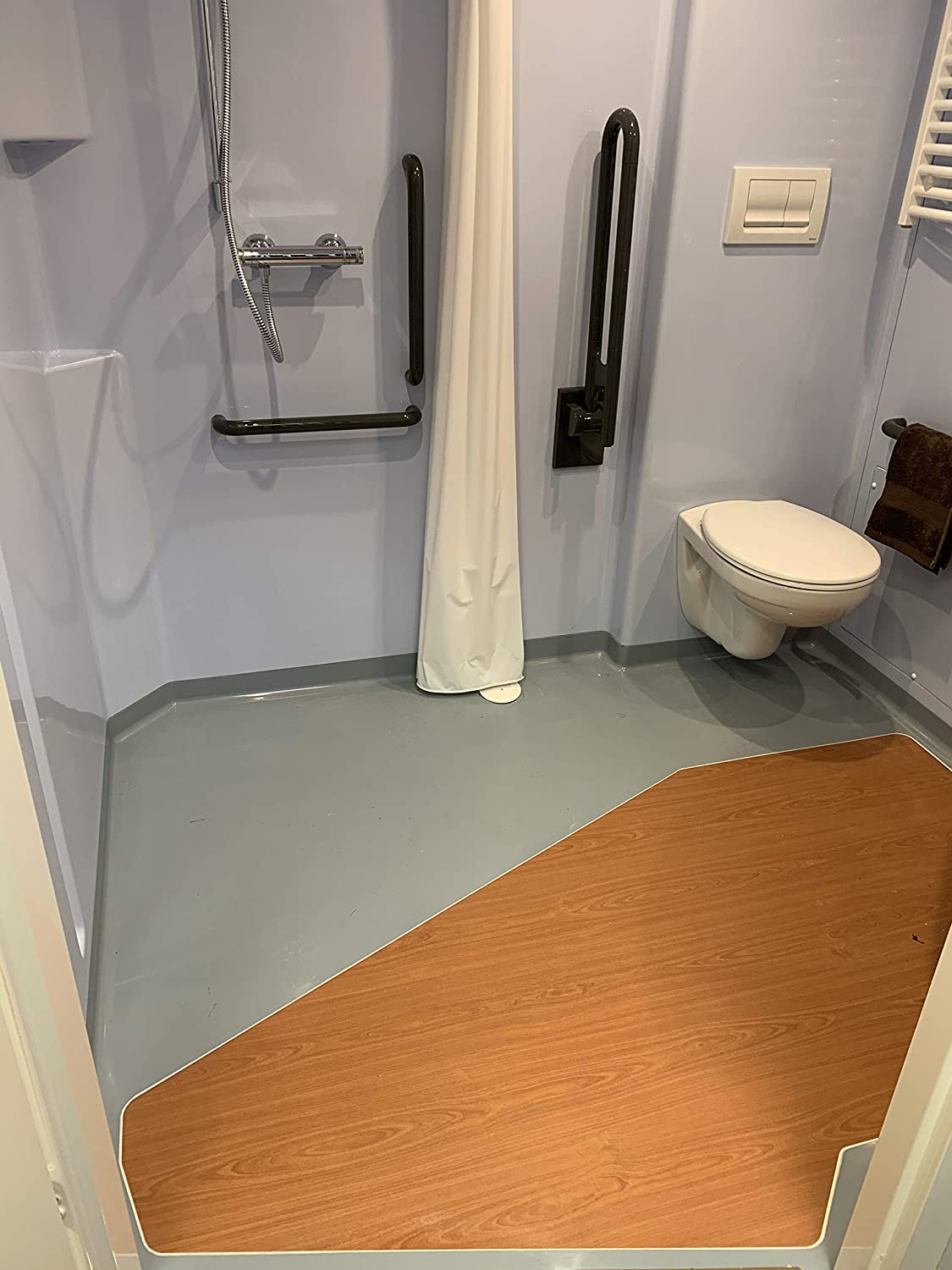

ARLEY Accessible Modular Bathroom POD Mellite

Product Information

• Length 2280 mm
• Width 1830 mm
• Height̴Ì_ 2210 mm
• Surface int. 2.90 m2
• Weight̴Ì_ 350 kg
• Door̴Ì_ 900 mm

Features

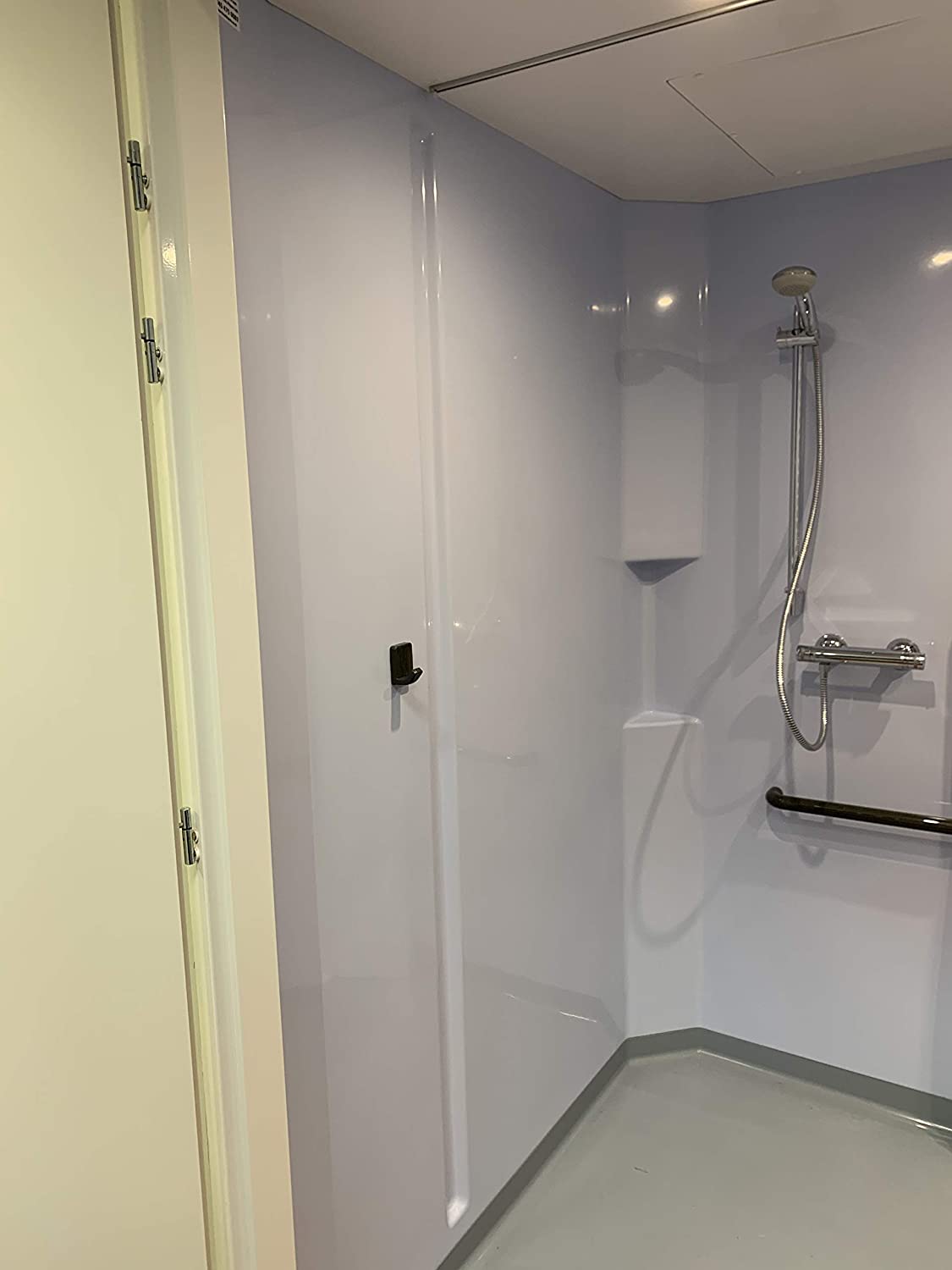

DOOR

• ̴Ì_Door frame painted white (RAL9010)̴Ì_
• ̴Ì_Lacquered hinge door (width 900 mm)
• ̴Ì_Lever door lock
• ̴Ì_2 Robe hooks

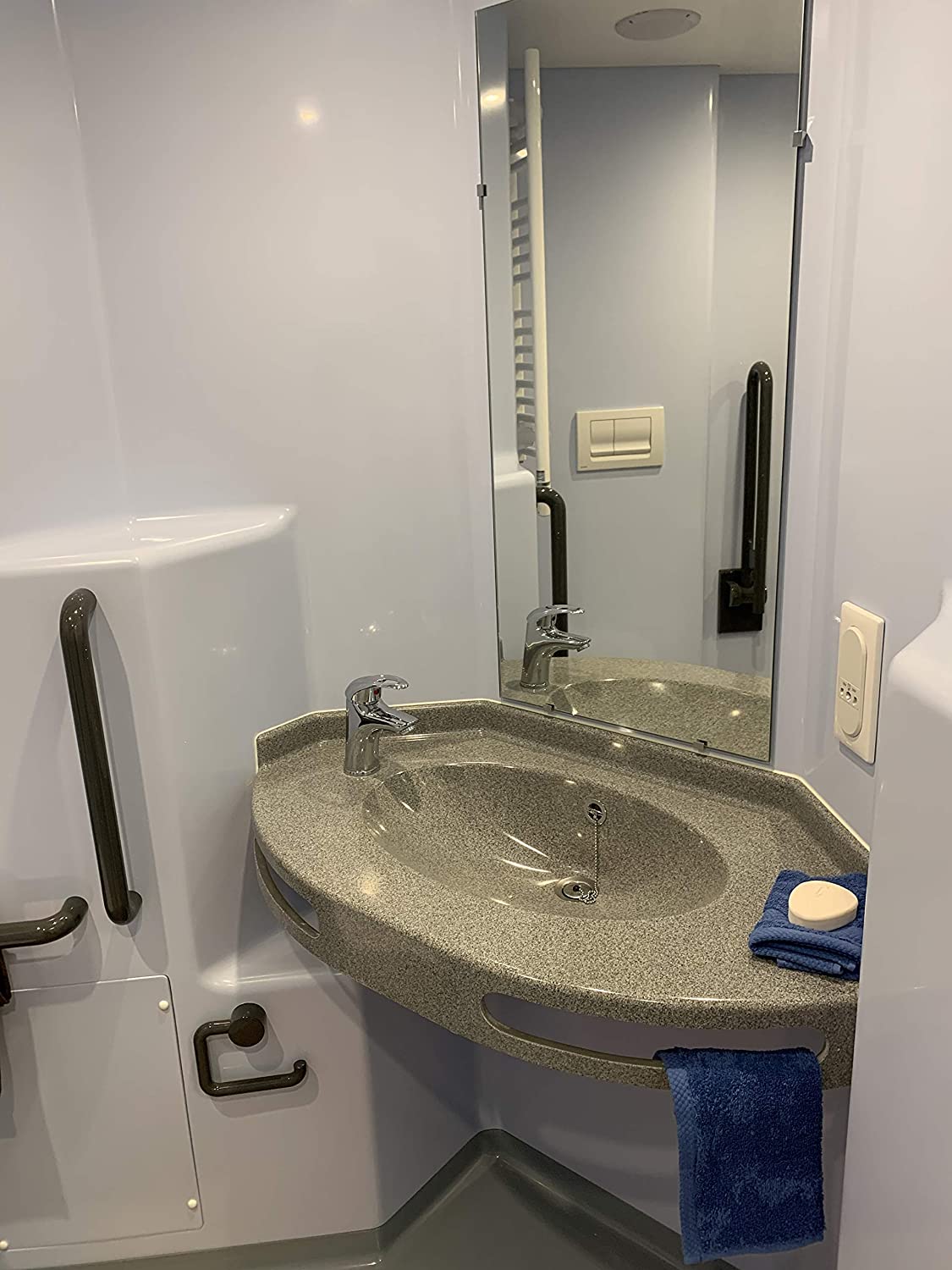

BASIN

• ̴Ì_Concrete resin basin with a gel coat finish
• ̴Ì_Towel rail cutout on the front of the basin
• ̴Ì_Mixer tap̴Ì_with anti-bacterial handle
• ̴Ì_3 Integrated shelves
• ̴Ì_Waste + siphon
• ̴Ì_Fixed mirror 950 x 440 mm

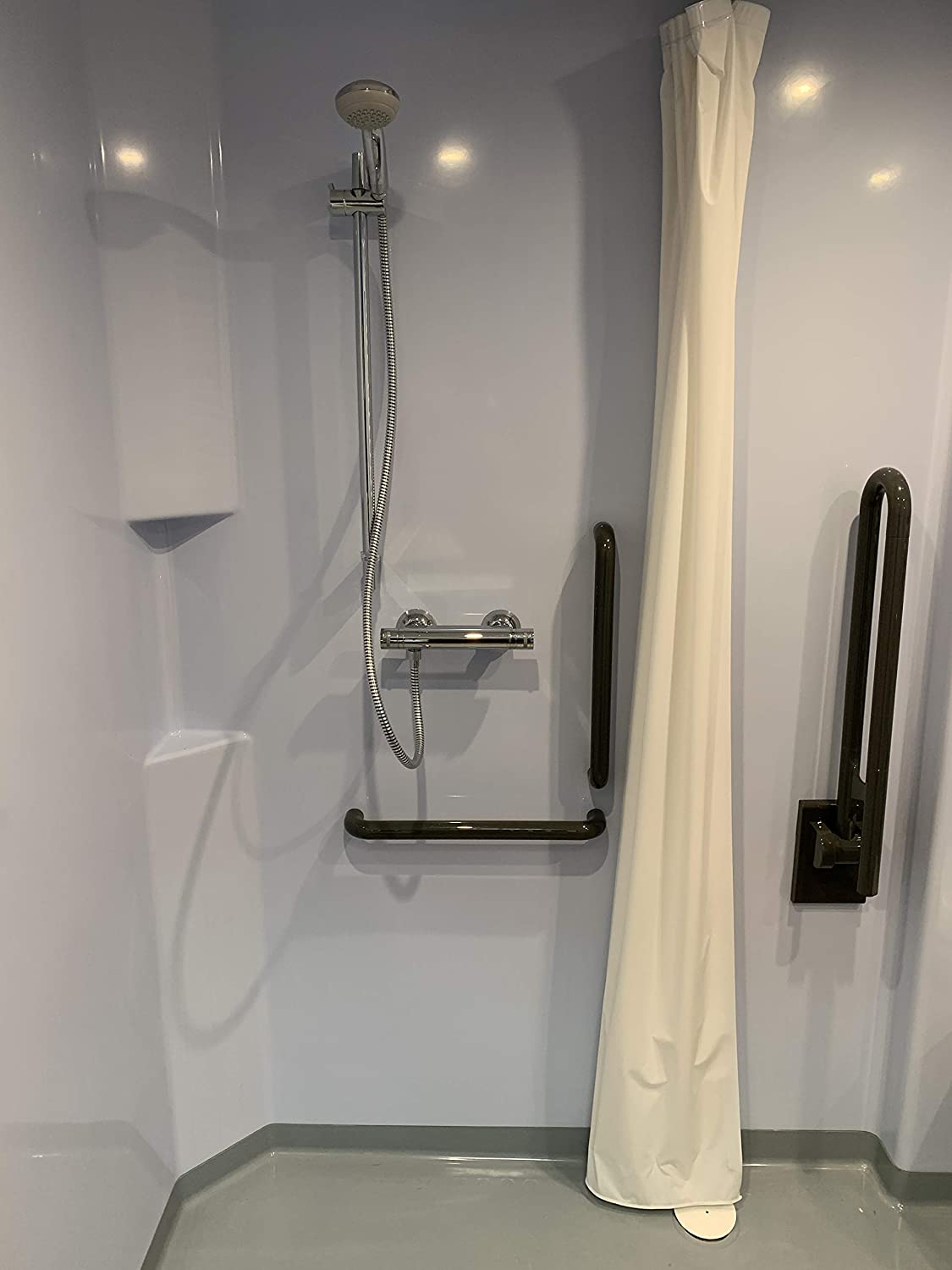

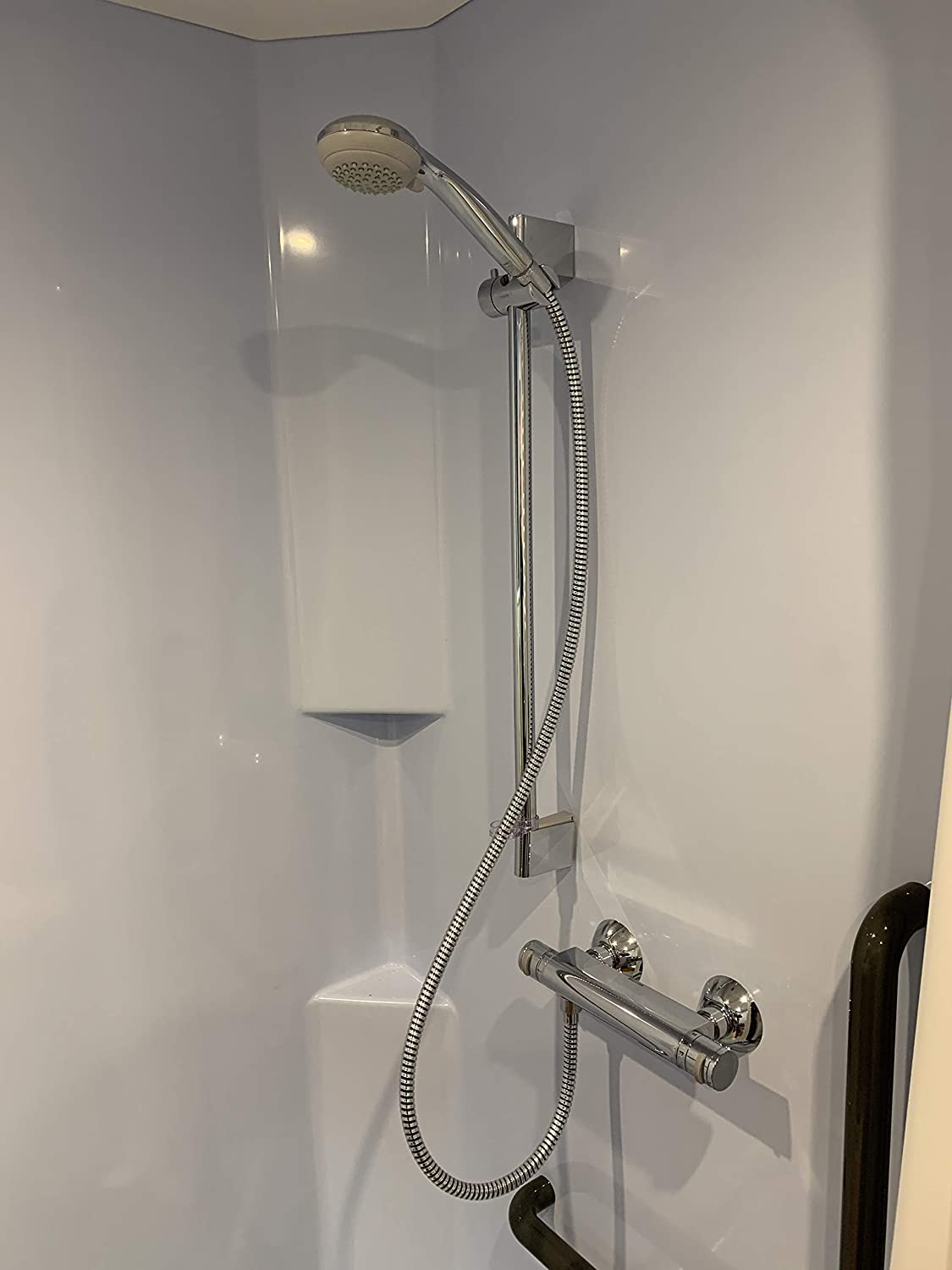

SHOWER

• ̴Ì_Bar valve incorporating fexible hose and head

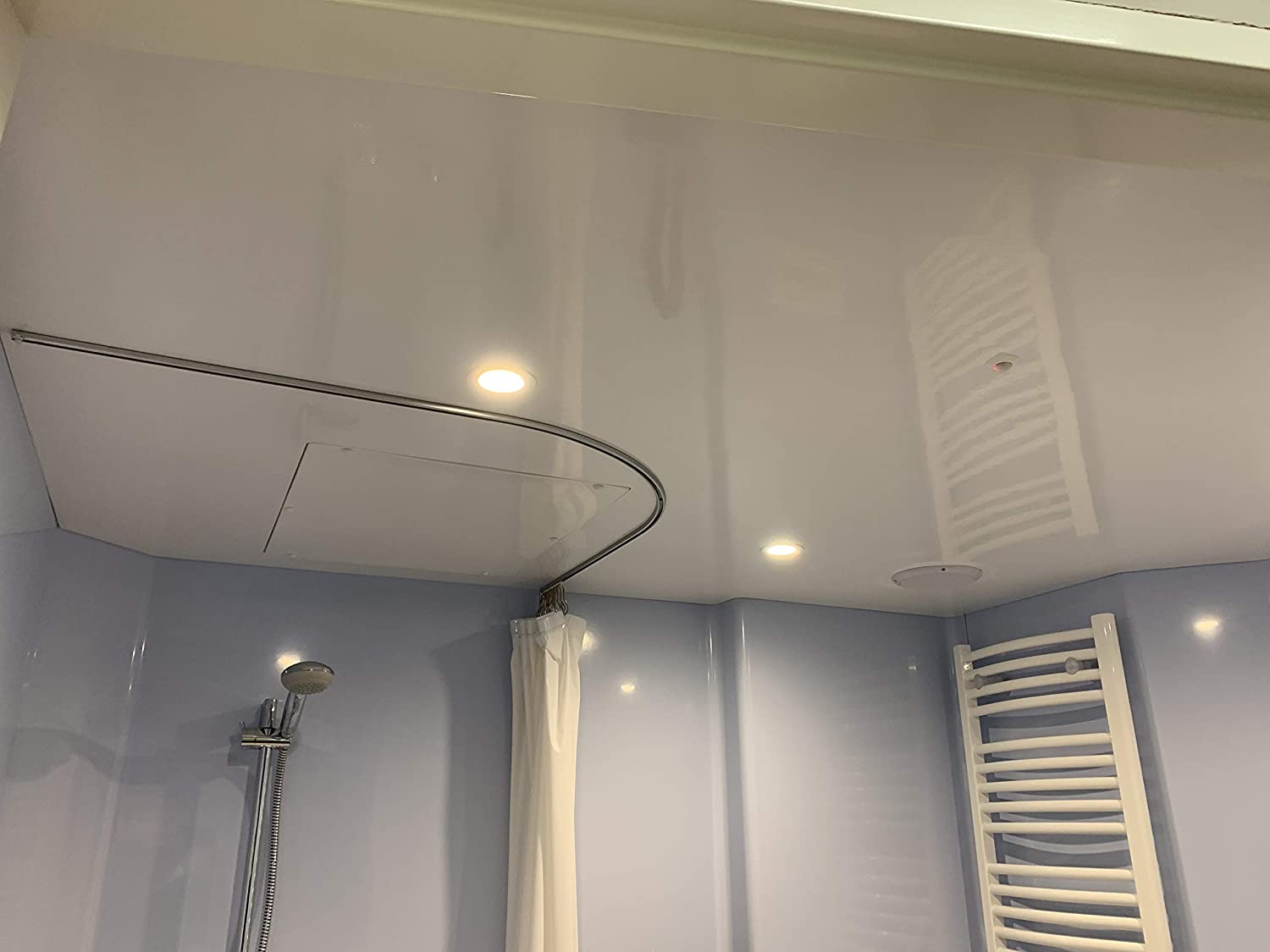

• ̴Ì_Shower curtain mounted on aluminium rail
• ̴Ì_2 integrated̴Ì_grab rails
• ̴Ì_1 Soap dish

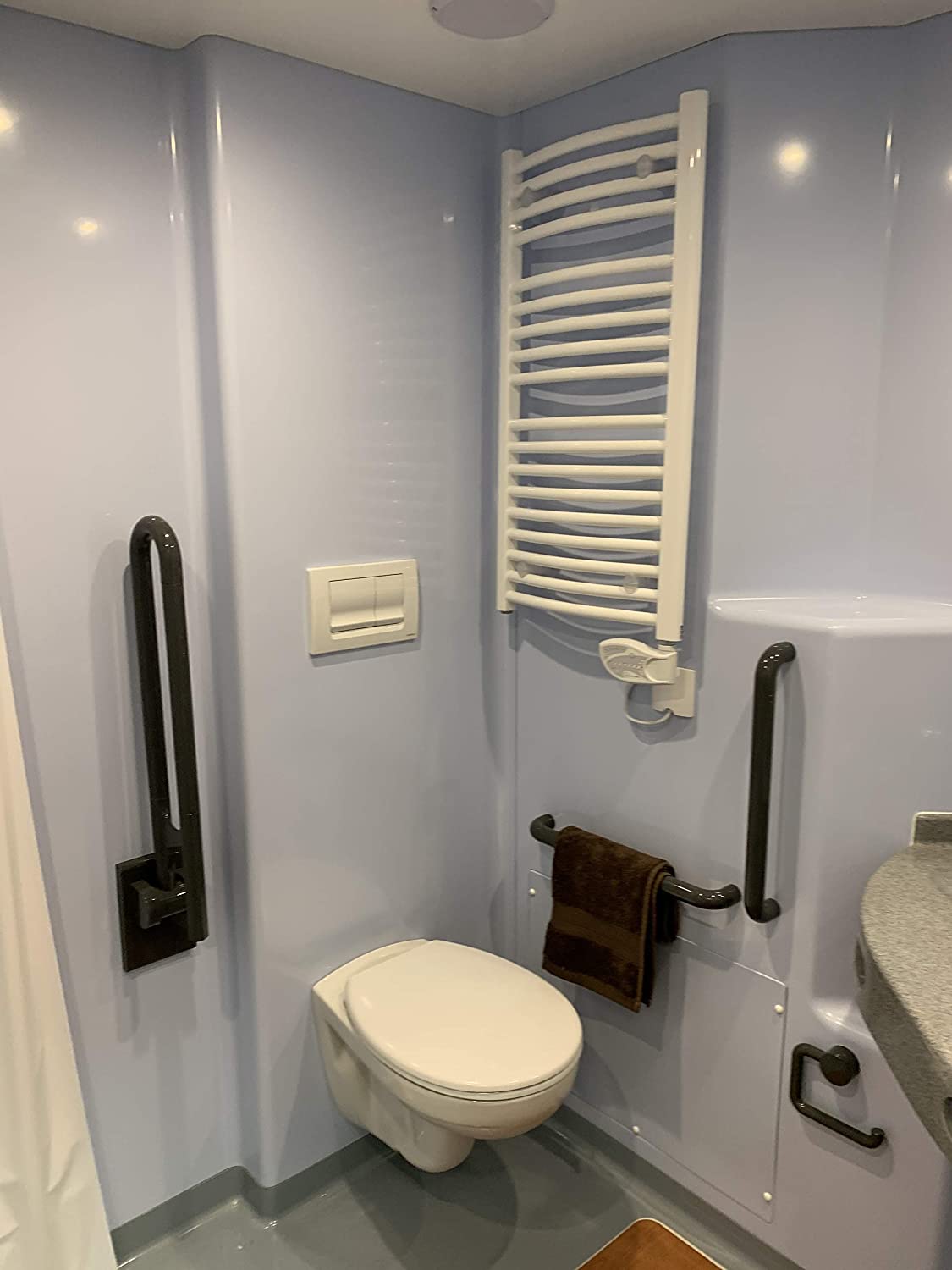

WC

• ̴Ì_WC Wall hung
• ̴Ì_Double seat thermoset (white)
• ̴Ì_Toilet roll holder
• ̴Ì_Cistern Flush 3/6 L
• ̴Ì_Flush panel
• ̴Ì_2 Straight grab rails

Structure

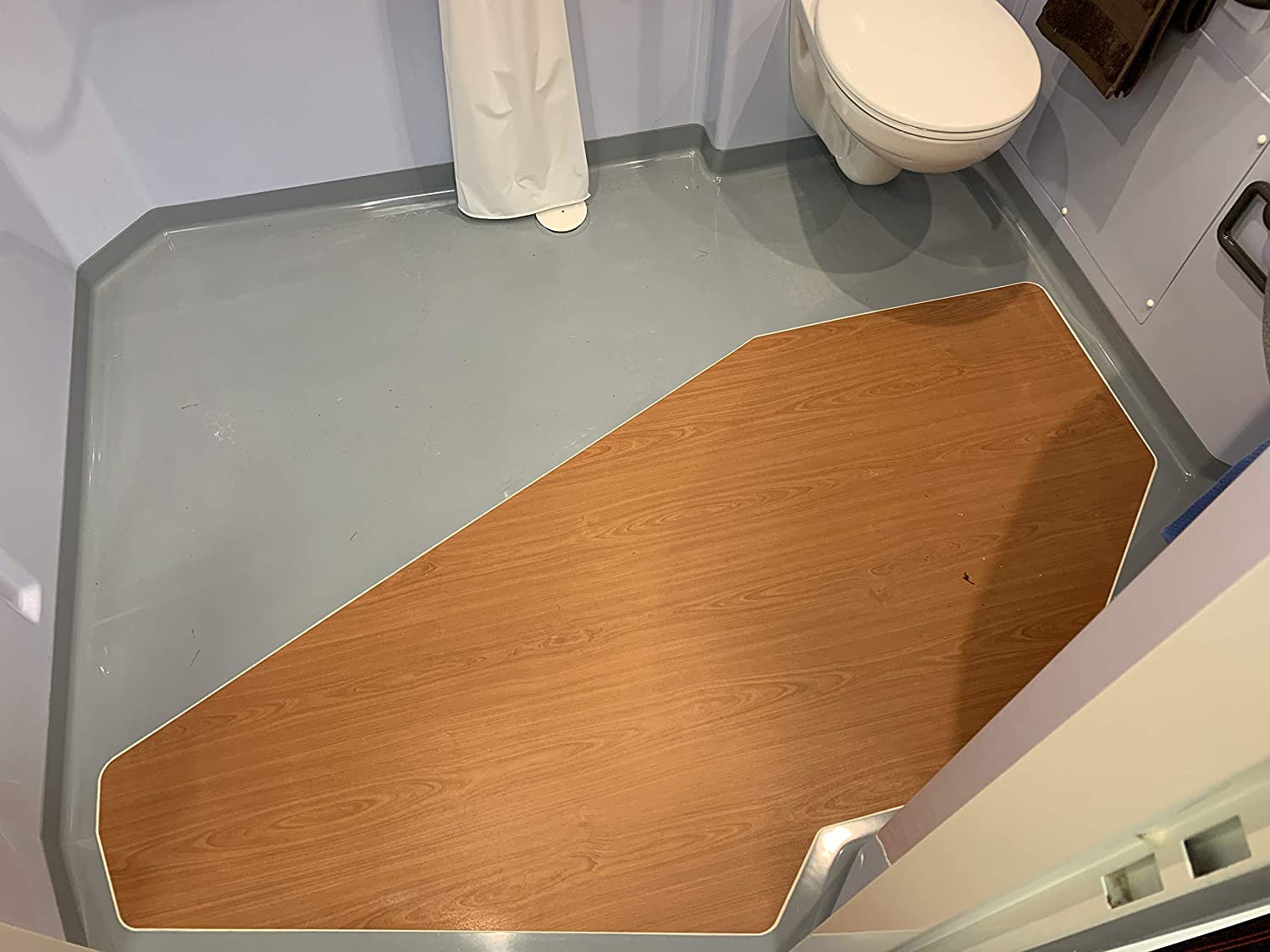

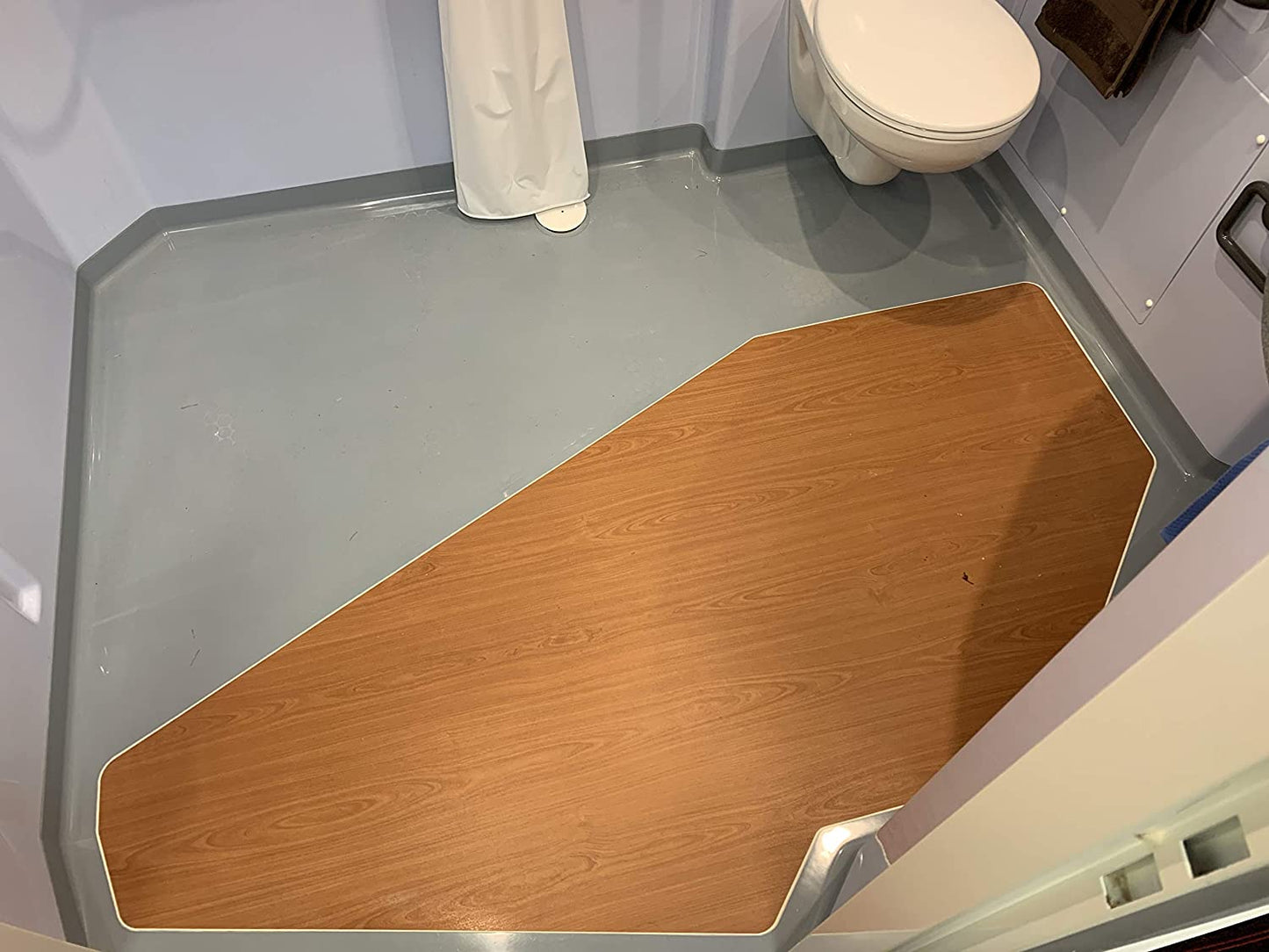

• GRP resin, non-slip foor with a vinyl inlay
• Shower area built into the structure
• Sealing between the walls provided by a compressed seal
• Surface texture: gel coat (M2 fre rating)
• The bathroom pod is fully demountable

Connections

ELECTRICITY

• ̴Ì_IP65 2 LED spot lights
• ̴Ì_Earthing: cable section 6 mm̴_
• ̴Ì_VMC self-adjusting 30 m3 / h - 125 mm
• ̴Ì_Connection to the junction box located in ceiling or access area
• ̴Ì_Hot / Cold multilayered, pex pipe with crimped connections to 1/2‰ۡó»‰ۡó»
• ̴Ì_Basin and PVC shower waste 40mm and 32mm WC 100mm

DELIVERY AND INSTALLATION (EXCLUDING CONNECTION TO SERVICES) IS INCLUDED̴Ì_ IN THE PRICE, MAINLAND UK ONLY.
