Aztec

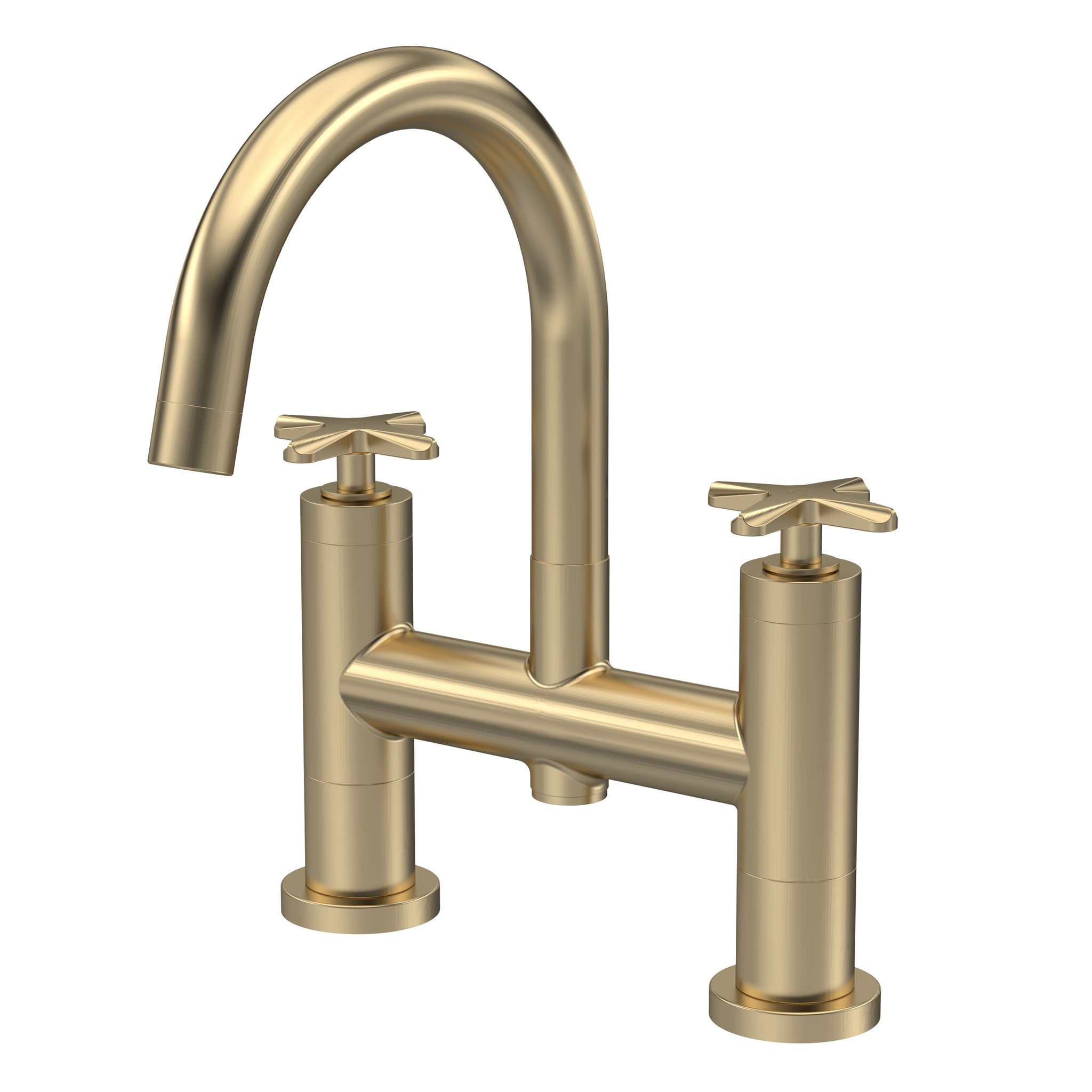

NUIE Bath Filler

£216.17

Shipping calculated at checkout.

Timeless symmetry with crosshead . Swivel spout. Ceramic disc technology for long life and smooth operation. High quality brass internals with luxury brushed brass finish. WRAS approved.

Colour Finish: Brushed Brass

Flow Rate At 0 1 Bar L Min: 8.0000

Flow Rate At 0 5 Bar L Min: 29.0000

Flow Rate At 1 Bar L Min: 40.0000

Flow Rate At 2 Bar L Min: 48.0000

Guarantee: 3 Years

Handle Type: Crosshead

Material: Brass

Minimum Operating Pressure Bar: 0.2 Bar

Mount Type: Deck

Packaging Height: 100.0000 mm

Packaging Length: 265.0000 mm

Packaging Width: 235.0000 mm

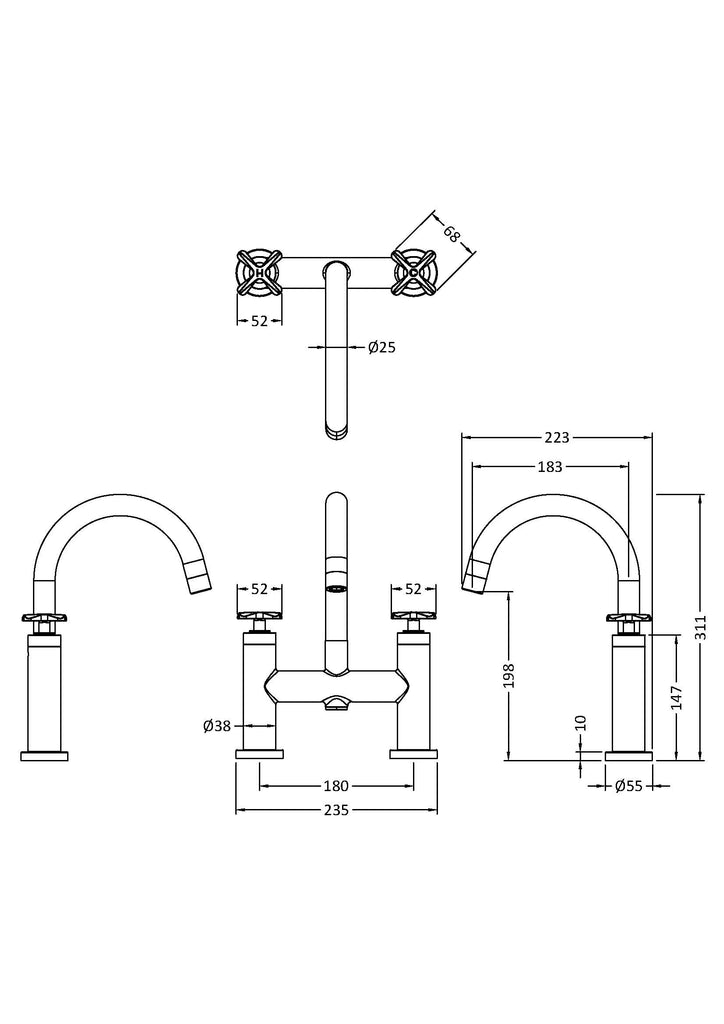

Pipe Centres Mm: 180

Product Depth: 50 mm

Product Height: 319 mm

Product Width: 230 mm

Tap Holes Required: 2

Tap Spout Projection: 115 mm

Tmv2 Approved: No

Tmv3 Approved: No

Valve Cartridge Type: 1/4 Turn Ceramic Disc

Waste Included: No

Wras Approval Number: 2204060

Wras Approved: Yes
