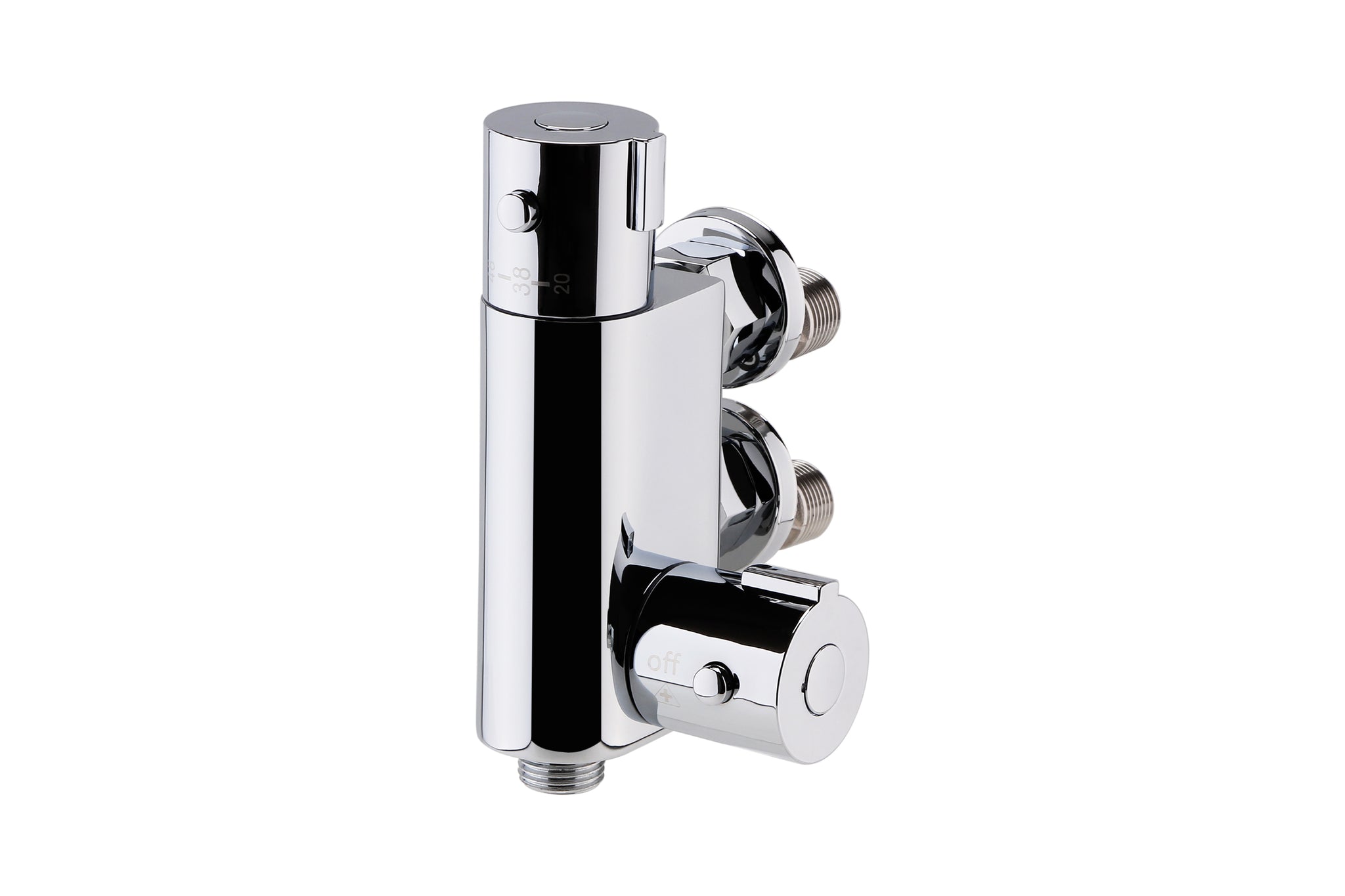

NUIE Vertical Thermostatic Bar Valve

£88.15

Shipping calculated at checkout.

Vertical design for when space is at a premium. Thermostatically controlled. Slimline design. Suitable for water systems between 0.1-4 bar pressure. Manufactured from high quality brass & ABS.

Colour Finish: Chrome

Flow Rate At 0 1 Bar L Min: 2.6000

Flow Rate At 0 5 Bar L Min: 7.5000

Flow Rate At 1 Bar L Min: 11.1000

Flow Rate At 2 Bar L Min: 16.2000

Flow Rate At 3 Bar L Min: 20.2000

Guarantee: 5 Years

Handle Type: Round

Material: Brass Abs

Minimum Operating Pressure Bar: 0.2 Bar

Mount Type: Surface/Wall

Packaging Height: 180.0000 mm

Packaging Length: 80.0000 mm

Packaging Width: 90.0000 mm

Product Depth: 185 mm

Product Height: 45 mm

Product Width: 90 mm

Tmv2 Approved: No

Tmv3 Approved: No

Valve Cartridge Type: 1/4 Turn

Wras Approved: No
