Binsey

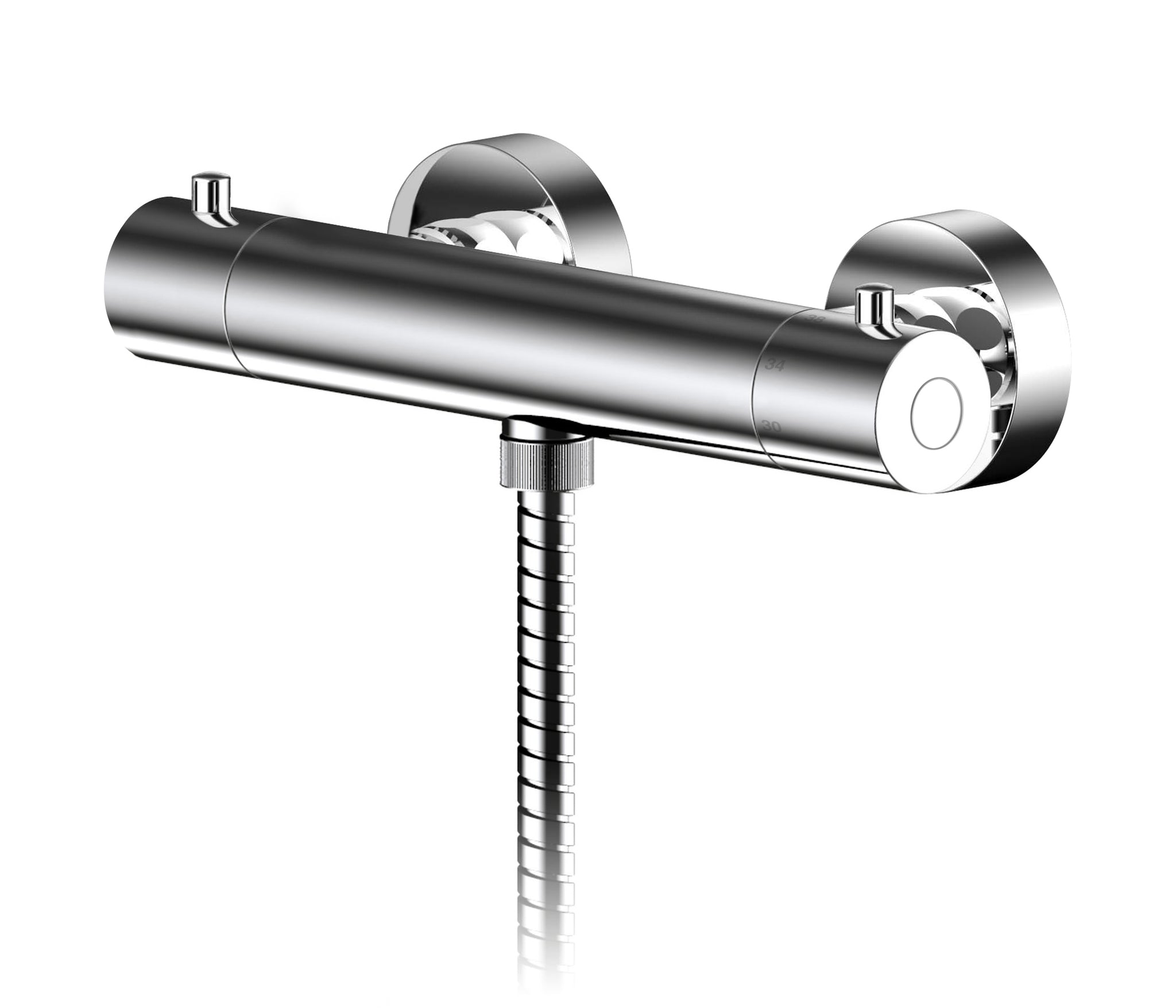

NUIE Thermostatic Bar Valve
Regular price
£126.96
Shipping calculated at checkout.
Thermostatically controlled. Bottom outlet. Thermostatic control to +/- 2 degrees even if the water pressure fluctuates. Full thermal protection to prevent scalding in the event of hot or cold water shut off. In the event of hot or cold water failure the valve will shut down as per the relevant standard. Suitable for unvented mains pressure systems. Suitable for shower pumps. Manufactured from high quality brass & ABS.
Colour Finish: Chrome
Flow Rate At 0 1 Bar L Min: 3.5000
Flow Rate At 0 5 Bar L Min: 8.3000
Flow Rate At 1 Bar L Min: 11.9000
Flow Rate At 2 Bar L Min: 16.9000
Flow Rate At 3 Bar L Min: 20.8000
Guarantee: 5 Years
Handle Type: Round
Material: Brass Abs
Minimum Operating Pressure Bar: 0.2 Bar
Mount Type: Wall Hung
Packaging Height: 50.0000 mm
Packaging Length: 315.0000 mm
Packaging Width: 98.0000 mm

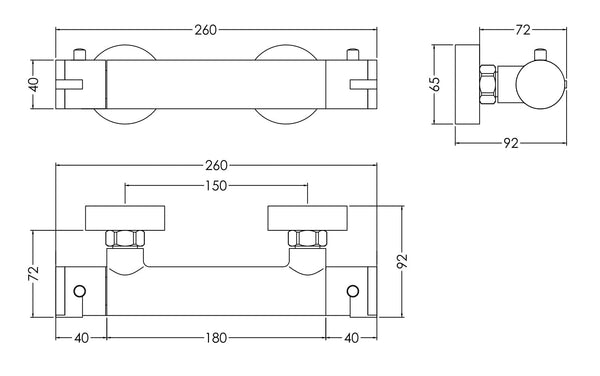

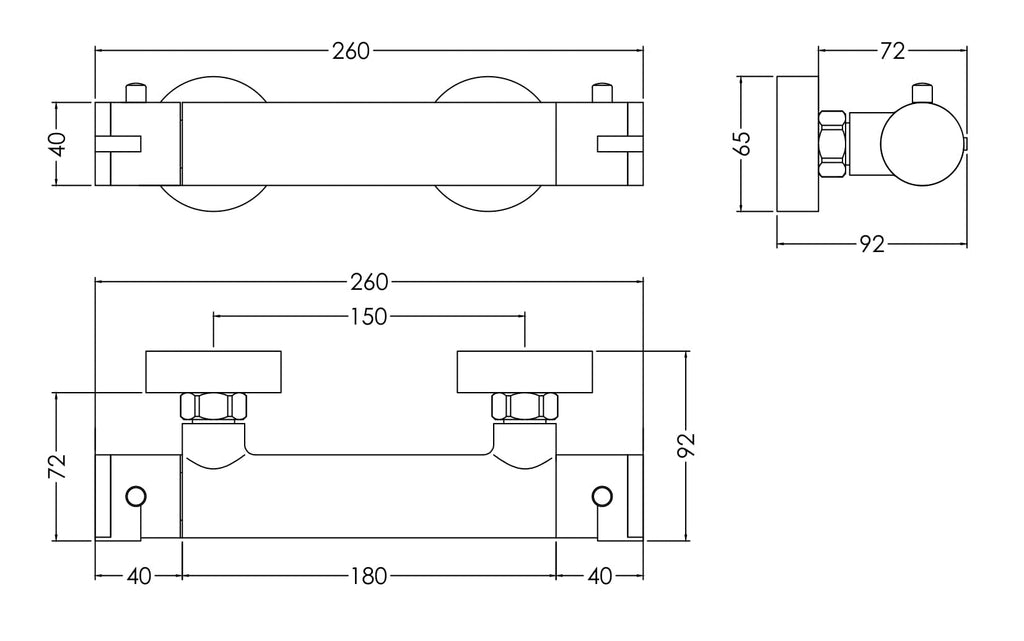

Pipe Centres Mm: 150
Product Depth: 72 mm
Product Height: 55 mm
Product Width: 275 mm
Tmv2 Approved: No
Tmv3 Approved: No
Valve Cartridge Type: 1/4 Turn
Wras Approved: No
