Windon

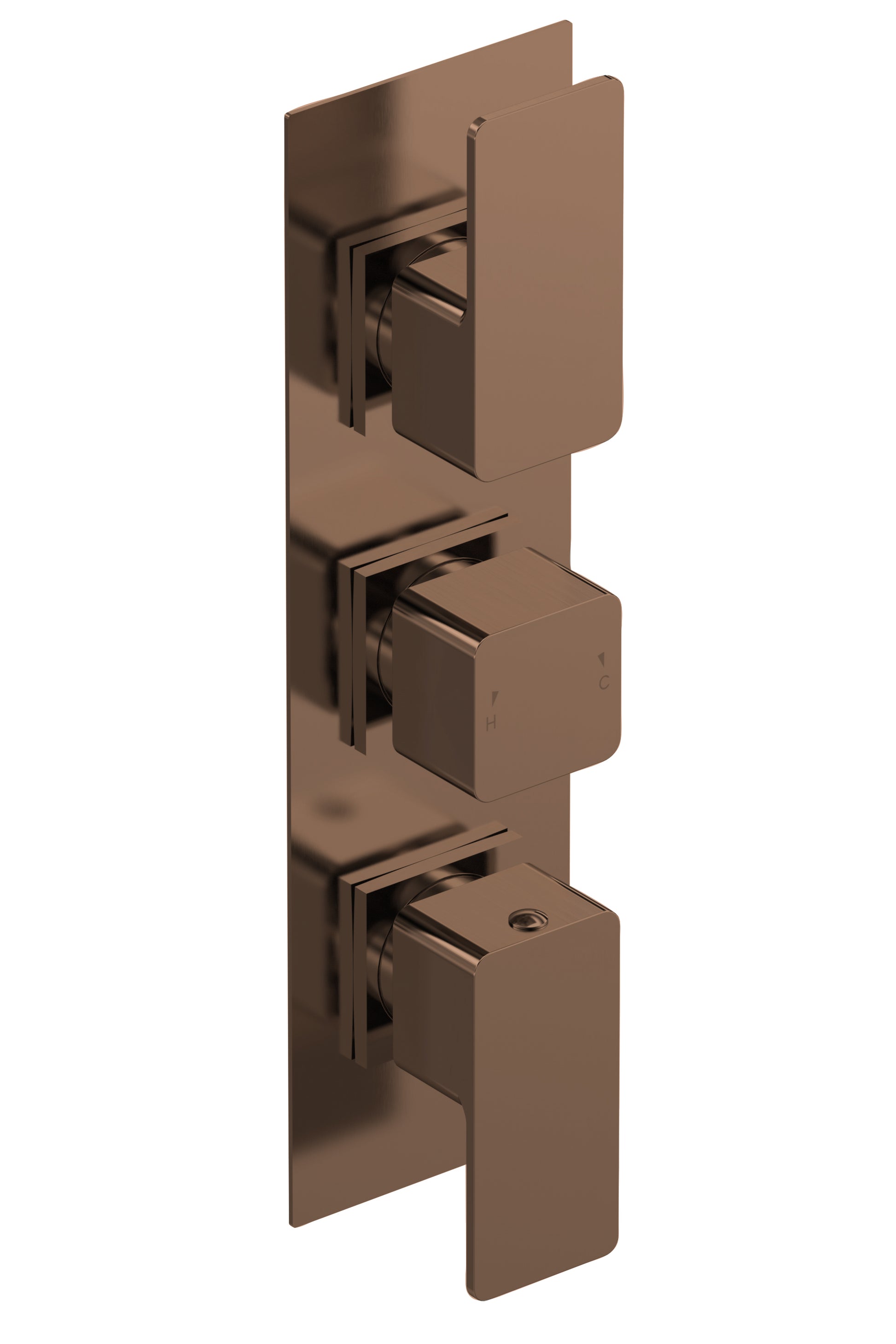

NUIE Windon Triple Thermostatic Valve with Diverter
NUIE Windon Triple Thermostatic Valve with Diverter
Couldn't load pickup availability
Minimalist sleek design. Can be fitted vertically or horizontally. Accurate flow control. Thermostatic control to +/- 2 degrees even if the water pressure fluctuates. Full thermal protection to prevent scalding in the event of hot or cold water shut off. In the event of hot or cold water failure the valve will shut down as per the relevant standard. The unique cartridge is highly resistant to calcium build up - even in hard water areas. Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers. Excellent flow rates - even at low pressure. The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing. Simply remove the cartridge turn 180° and replace. Manufactured from solid brass.
- colour finish: Brushed Brass
- flow rate at 0 5 bar l min: 13.0000
- flow rate at 1 bar l min: 17.0000
- flow rate at 2 bar l min: 24.0000
- flow rate at 3 bar l min: 27.0000
- guarantee: 3 Years
- handle type: Lever/Square
- material: ABS,Brass
- minimum operating pressure bar: 0.5 Bar
- mount type: Surface/Wall
- packaging height: 110.0000 mm
- packaging length: 320.0000 mm
- packaging width: 250.0000 mm

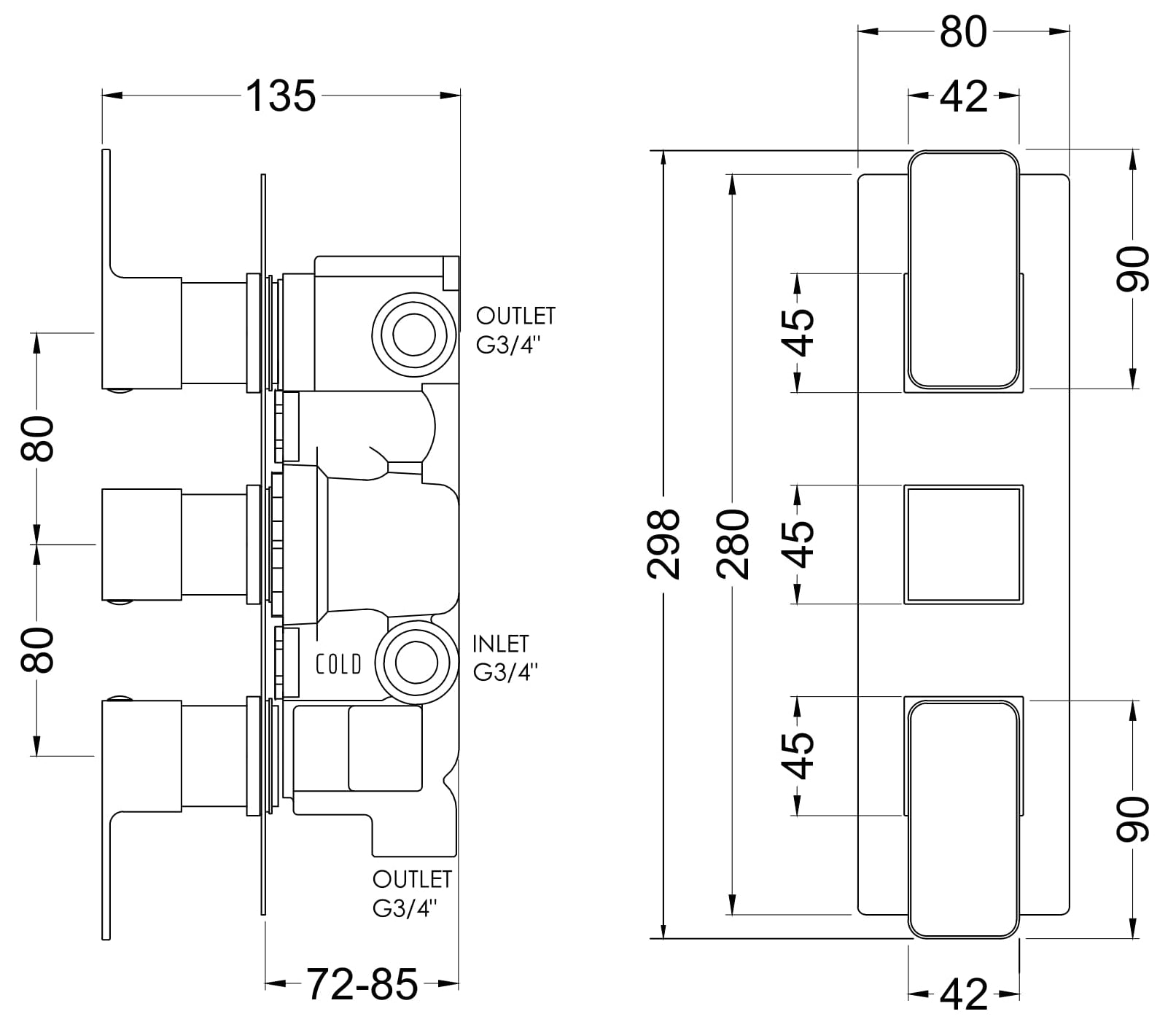

- product depth: 135 mm
- product height: 300 mm
- product width: 80 mm
- shipping load type: Standard Parcel
- tmv2 approved: No
- tmv3 approved: No
- valve cartridge type: 1/4 Turn
- wras approval number: 250602040
- wras approved: Yes
